BD Insyte™ Autoguard™

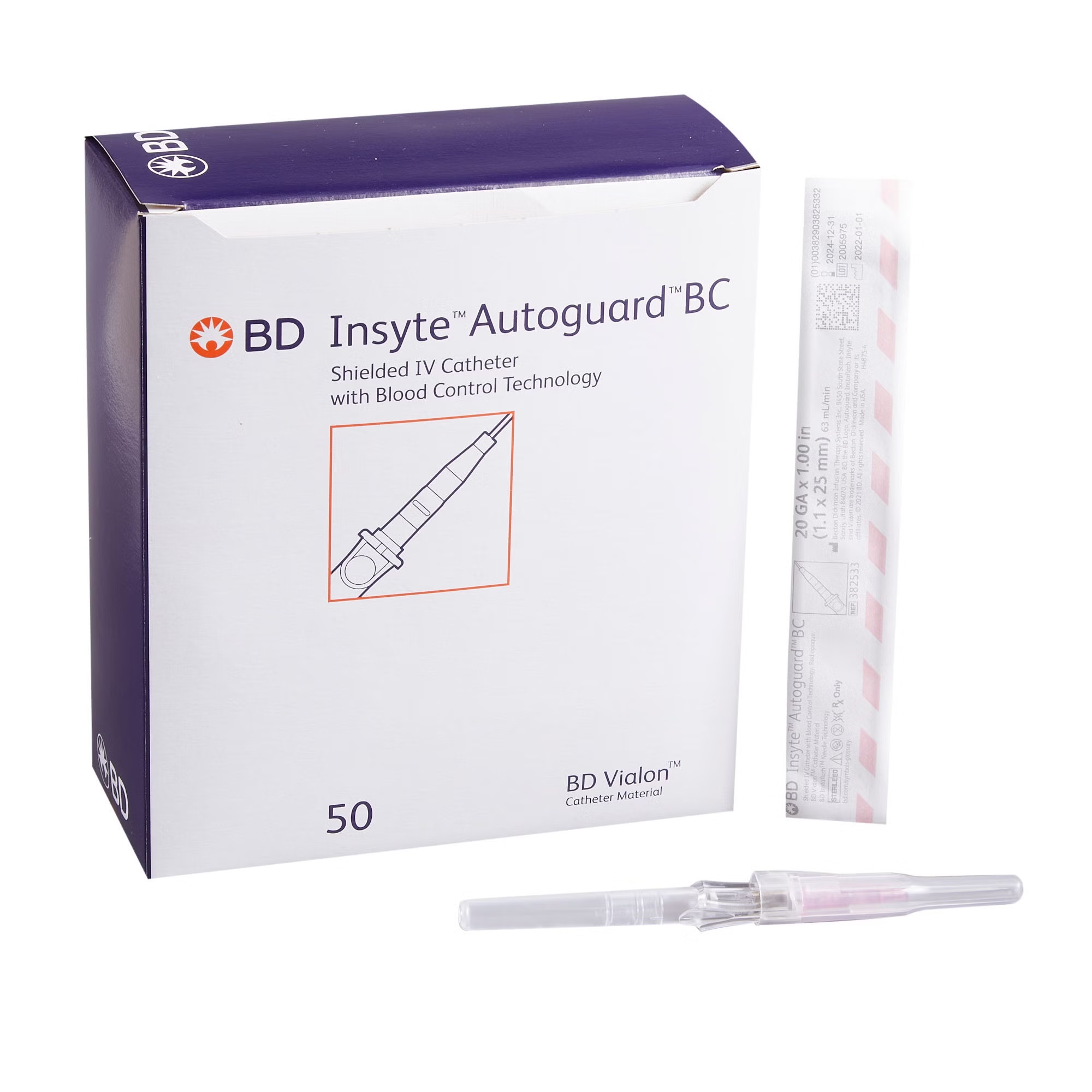

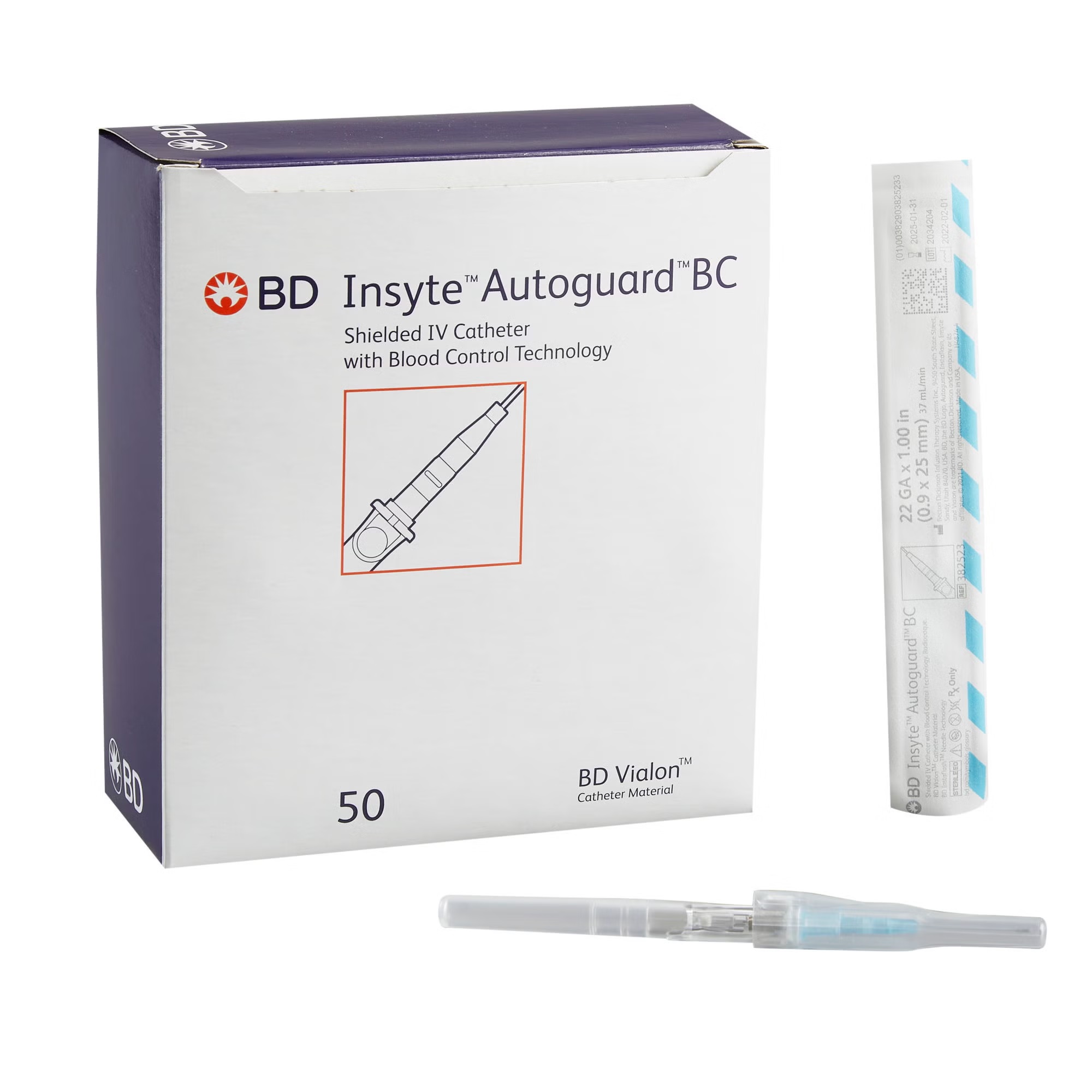

BD Insyte Autoguard BC Peripheral IV Catheters with Blood Control, Straight Hub – BX/50EA
Sterile, disposable peripheral IV catheters featuring blood-control technology, a straight color-coded hub, BD Vialon biomaterial, and push-button needle shielding. Available in multiple gauge and length combinations, 50 catheters per box.
Non-returnable
$180.00
Gauge:
Length:
PKG:
Customize
Share:
Product Details
BD Insyte Autoguard BC Peripheral IV Catheters with Blood Control, Straight Hub – BX/50EA are designed for peripheral vascular access with integrated blood-control and push-button safety technologies. The blood-control valve helps restrict blood flow from the catheter hub until the initial connection is made, while the shielding mechanism fully encapsulates the needle after activation.
The radiopaque BD Vialon catheter material is paired with a notched stainless-steel needle and color-coded straight hub. Available configurations range from 24G to 16G, allowing the appropriate gauge and catheter length to be selected for the intended clinical procedure.
Key Features
| Blood-Control Technology | Push-Button Safety | Straight Hub |
|---|---|---|
| Restricts blood flow until the initial luer connection is made | Activates needle shielding with the push of a button | Compact, non-winged configuration |
| BD Vialon Biomaterial | BD Instaflash Needle | Color-Coded Gauges |
|---|---|---|
| Polyurethane catheter material designed for peripheral IV access | Notched needle supports vessel-entry visualization | Hub color corresponds with catheter gauge |
| Sterile and Disposable | Radiopaque Catheter | Multiple Configurations |
|---|---|---|
| Individually packaged for single use | Supports visualization under X-ray | Nine gauge and length combinations |
Specifications
| Attribute | Details | Attribute | Details |
|---|---|---|---|
| Brand | Insyte Autoguard BC | Manufacturer | BD |
| MPN | Varies by Variant | Application | Peripheral IV catheter |
| Hub Type | Straight hub | Blood Control | Yes |
| Safety Activation | Push button | Safety Feature | Needle shielding |
| Catheter Material | BD Vialon polyurethane biomaterial | Needle Material | Stainless steel |
| Needle Point | Notched | Vessel Entry Confirmation | BD Instaflash |
| Number of Ports | Without port | Port Type | Without port |
| Sterility | Sterile | Usage | Disposable / Single use |
| X-Ray Compatibility | Radiopaque | Hub Material | Plastic |
| Available Gauges | 24G, 22G, 20G, 18G, 16G | Available Lengths | 3/4, 1, 1.16, 1.77 and 1.88 inches |
| Product Packaging | CS/4BX/50EA | Minimum Selling Unit | BX/50EA |
| Catheters per Box | 50 | Catheters per Case | 200 |
| Country of Origin | United States | UNSPSC | 42221512 |
| BAA Compliant | Yes | TAA Compliant | Yes |
Variant Options
Primary Option: Gauge
Secondary Option: Catheter Length
Variant-to-MPN Mapping
| Gauge | Length | MPN | Hub Color | Flow Rate | Pressure Rating | Packaging |
|---|---|---|---|---|---|---|
| 24G | 3/4 in. | 382512 | Yellow | 20 mL/min | Not pressure rated | BX/50EA |
| 22G | 1 in. | 382523 | Blue | 37 mL/min | 300 psi | BX/50EA |
| 20G | 1 in. | 382533 | Pink | 63 mL/min | 300 psi | BX/50EA |
| 20G | 1.16 in. | 382534 | Pink | 61 mL/min | 300 psi | BX/50EA |
| 20G | 1.88 in. | 382537 | Pink | 54 mL/min | 300 psi | BX/50EA |
| 18G | 1.16 in. | 382544 | Green | 95 mL/min | 300 psi | BX/50EA |
| 18G | 1.88 in. | 382547 | Green | 87 mL/min | 300 psi | BX/50EA |
| 16G | 1.16 in. | 382554 | Gray | 193 mL/min | Not pressure rated | BX/50EA |
| 16G | 1.77 in. | 382557 | Gray | 185 mL/min | Not pressure rated | BX/50EA |
Warnings
| Trained Personnel Only | Single-Use Device | Sterile Package Integrity |
|---|---|---|
| Use only by personnel trained in peripheral IV insertion | Do not reuse or attempt to resterilize | Do not use if the individual package is opened, damaged, or compromised |
| Sharps Safety | Correct Variant Selection | Pressure Limitations |
|---|---|---|
| Activate the safety mechanism and dispose of the needle immediately after use | Select the gauge and length appropriate for the patient and procedure | Use only pressure-rated variants for procedures requiring pressurized infusion |
| Inspect the Device | Follow Clinical Protocol | Disposal |
|---|---|---|
| Do not use a bent, damaged, or defective catheter or needle | Follow applicable vascular-access, infection-control, and site-monitoring procedures | Dispose of used devices in an approved sharps container |
