Smoke Management System PlumeSafe® X5™

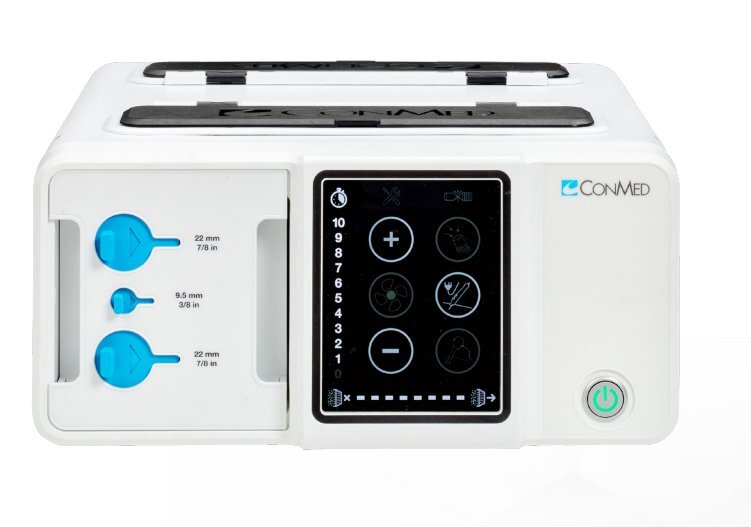

CONMED PlumeSafe X5 Smoke Management System 120V (EA)
The CONMED PlumeSafe X5 Smoke Management System (MPN PX5-120) is a smoke evacuation unit designed to help remove and filter surgical smoke and aerosols from the surgical site during electrosurgical and laser procedures. Built for clinical environments, it supports smoke capture at the source to reduce exposure in the operating room and improve procedural visibility when smoke is present.

This system features a touch-sensitive interface for selecting operating modes and adjusting suction-related settings. The PX5-120 configuration is a 100V–120V, 50/60 Hz unit that ships with a compatible PlumeSafe X5 smoke evacuator filter. The filter system is designed as a multi-stage filtration approach, including ULPA-level particulate capture performance.

The PlumeSafe X5 platform supports multiple procedure workflows, including open tubing use, electrosurgical pencil use, and laparoscopic smoke evacuation. Dual 7/8-inch ports allow connection of compatible smoke capture accessories, and the system includes occlusion detection functionality for open tubing operation. For facilities standardizing smoke management, this unit is suited for operating room use where surgical smoke evacuation is part of the clinical protocol.

For best results, facilities should follow the product instructions for use, including proper setup, accessory routing, and filter replacement when indicated by the system’s filter-life monitoring.

Key Features:
•Smoke evacuation unit designed to remove and filter surgical smoke and aerosols from a surgical site
•Touch-sensitive display for selecting modes and adjusting settings
•Three procedure workflows supported: Open Tubing mode, Pencil mode, and Laparoscopic mode
•5-stage filtration design with ULPA-level particulate capture performance
•Occlusion detection capability for Open Tubing mode
•Dual 7/8-inch ports to connect compatible smoke capture accessories
•PX5-120 configuration ships with a compatible filter and operates on 100V–120V, 50/60 Hz power

Benefits:
•Supports a cleaner surgical environment by capturing smoke at the source
•Helps maintain visibility when smoke is generated during procedures
•Easy mode selection and adjustments through a touch-sensitive interface
•Workflow flexibility for different procedural setups (open, pencil, laparoscopic)
•Clear filter-life guidance helps support consistent filtration performance over time

Specifications:
•Brand: CONMED
•Product Type: Smoke Management System (Smoke Evacuation Unit with Filter)
•Application: Smoke Management System
•For Use With: PlumePen Ultra / PlumePen Elite Electrosurgical Pencils
•Electrical: 100V–120V, 50/60 Hz (PX5-120 configuration)
•Filtration: Multi-stage filter design; ULPA-level particulate capture performance
•Ports: Dual 7/8 Inch ports
•System Dimensions (Unit): 7.40 in (H) x 14.00 in (W) x 19.10 in (D)
•System Weight (Unit): 21.0 lb
•UNSPSC: 42295124
•Country of Origin: Unknown
•Minimum Selling/Purchasing Unit: EA
•Minimum Package Qty: 1 EA
•Packaging (Factual): 1 EA
•MPN: PX5-120

Application:
Designed for evacuation and filtration of surgical smoke and aerosols produced during electrosurgical and laser procedures.
•Use Open Tubing mode for high-airflow smoke capture near the surgical field
•Use Pencil mode with compatible electrosurgical pencils when smoke capture at the source is required
•Use Laparoscopic mode for controlled evacuation of smoke from laparoscopic procedures as configured by facility protocol

Warnings:
•For use by trained medical professionals in clinical environments
•Follow the instructions for use for setup, operation, and maintenance
•Replace the filter when the system indicates the filter is depleted to help maintain performance
•This device is not intended for evacuation of fluid without appropriate fluid collection measures in the vacuum line
