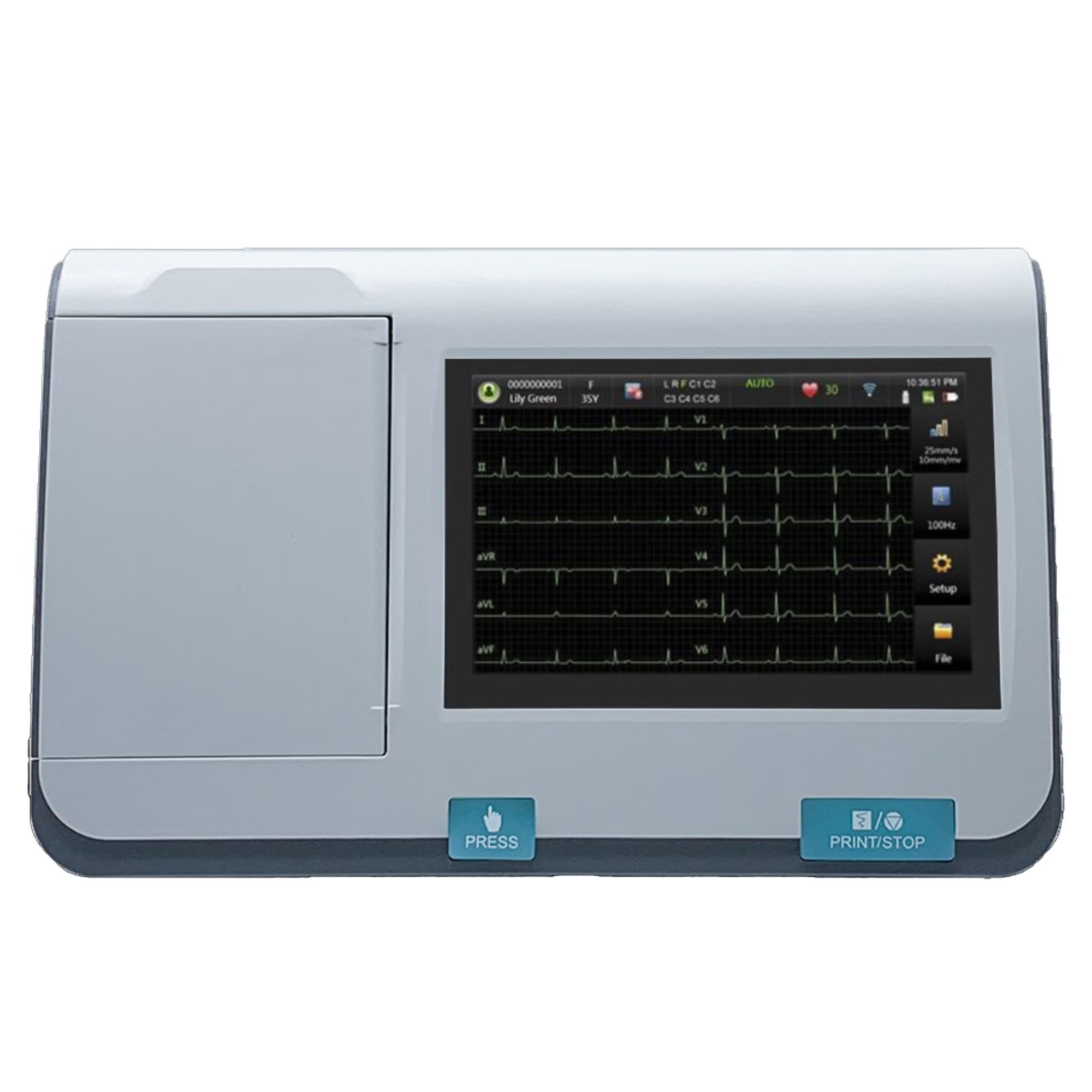

Electrocardiograph Edan SE-301 AC Power / Battery Operated Touch Screen Display Resting
Edan SE-301 compact 3-channel resting ECG system with simultaneous 12-lead acquisition, 5-inch color touchscreen, automatic ECG measurement and interpretation, integrated thermal recorder, rechargeable battery, and versatile data connectivity for professional clinical use.
SKU - SKUX-00363
Customize
Processing Time
Standard (1-3 Business Days) Estimated Order Processing Time Before Tracking Number Is Assigned
MFR Code
SE-301 Manufacturer Product Code
Share:
Product Details
Edan SE-301 3-Channel Resting ECG with 5 in Touchscreen combines simultaneous 12-lead ECG acquisition with a compact, lightweight design for physician offices, clinics, urgent care centers, and other professional healthcare environments. Its high-resolution color touchscreen provides clear waveform viewing and intuitive operation while the integrated thermal recorder allows ECG reports to be produced directly at the point of care.
The system supports automatic ECG measurement and interpretation, signal-quality detection, onboard report storage, USB and microSD connectivity, and external printer compatibility. AC power and an integrated rechargeable lithium-ion battery provide flexibility for stationary or mobile clinical workflows.
Key Features
| Simultaneous 12-Lead Acquisition | 5-Inch Touchscreen | 3-Channel Recorder |
|---|---|---|
| Captures all standard ECG leads simultaneously | High-resolution color display supports intuitive operation | Integrated thermal printer provides immediate ECG reports |
| Automatic Analysis | Signal Quality Detection | Rechargeable Battery |
|---|---|---|
| Supports automatic ECG measurement and interpretation | Helps identify electrode and signal-quality conditions | Supports portable operation away from AC power |
| USB & microSD Support | External Printer Compatible | Compact Design |
|---|---|---|
| Supports convenient data storage and transfer | Allows compatible external printing through USB | Lightweight format supports mobile and space-conscious workflows |
Specifications
| Attribute | Details | Attribute | Details |
|---|---|---|---|
| Brand | Edan | Manufacturer | Edan Instruments |
| MPN | SE-301 | Product Type | Electrocardiograph |
| Application | Resting ECG | Recorder Channels | 3 Channel |
| ECG Leads | 12 Standard Leads | Acquisition | Simultaneous 12 Lead |
| Display | 5-Inch Color Touchscreen | Display Resolution | 800 × 480 |
| A/D Converter | 24 Bit | Heart Rate Range | 30–300 bpm |
| Heart Rate Accuracy | ±1 bpm | Frequency Response | 0.01–300 Hz |
| Sampling Rate | Up to 16,000 Samples/Sec/Channel | ECG Analysis | Automatic Measurement & Interpretation |
| Recorder | Thermal Dot-Matrix | Recording Paper | 80 mm Thermal Paper |
| Paper Formats | Roll or Z-Fold | Data Storage | Internal Storage + External Media Support |
| USB | Yes | microSD | Yes |
| Ethernet | Yes | Wi-Fi | Optional Configuration |
| External Printer Support | Yes | Barcode Scanner Support | Compatible |
| Battery | Rechargeable Lithium-Ion | Battery Capacity | 2500 mAh |
| AC Power | 100–240 VAC, 50/60 Hz | Battery Charge Time | Approx. 3.5 Hours or Less |
| Device Dimensions | Approx. 8.8 × 5.6 × 2.1 in. | Device Weight | Approx. 2.2 lb Excluding Battery/Paper |
| Product Packaging | EA | Minimum Selling Unit | EA |
| Clinical Category | Electrocardiography | Use Environment | Professional Healthcare |
Included Components
| Component | Included |
|---|---|
| Edan SE-301 Electrocardiograph | Yes |
| ECG Patient Cable | Yes |
| Adult Resting ECG Electrodes | Yes |
| Lead Clips | Yes |
| Recording Paper | Yes |
| Paper Roller | Yes |
| AC Power Cord | Yes |
| Power Adapter | Yes |
| Rechargeable Lithium-Ion Battery | Yes |
| User Documentation | Yes |
Warnings
| Professional Use | Electrode Placement | ECG Interpretation |
|---|---|---|
| Intended for operation by appropriately trained healthcare personnel | Verify correct electrode and lead placement before recording | Automated interpretation should be reviewed by a qualified clinician |
| Electrical Safety | Patient Cables | Battery & Power |
|---|---|---|
| Use compatible power equipment and accessories | Inspect cables, leads, and connectors before use | Follow proper charging and power-management procedures |
| Cleaning & Disinfection | Recorder | Service |
|---|---|---|
| Follow approved device cleaning and disinfection procedures | Use compatible ECG recording paper | Remove malfunctioning equipment from clinical service until properly evaluated |
