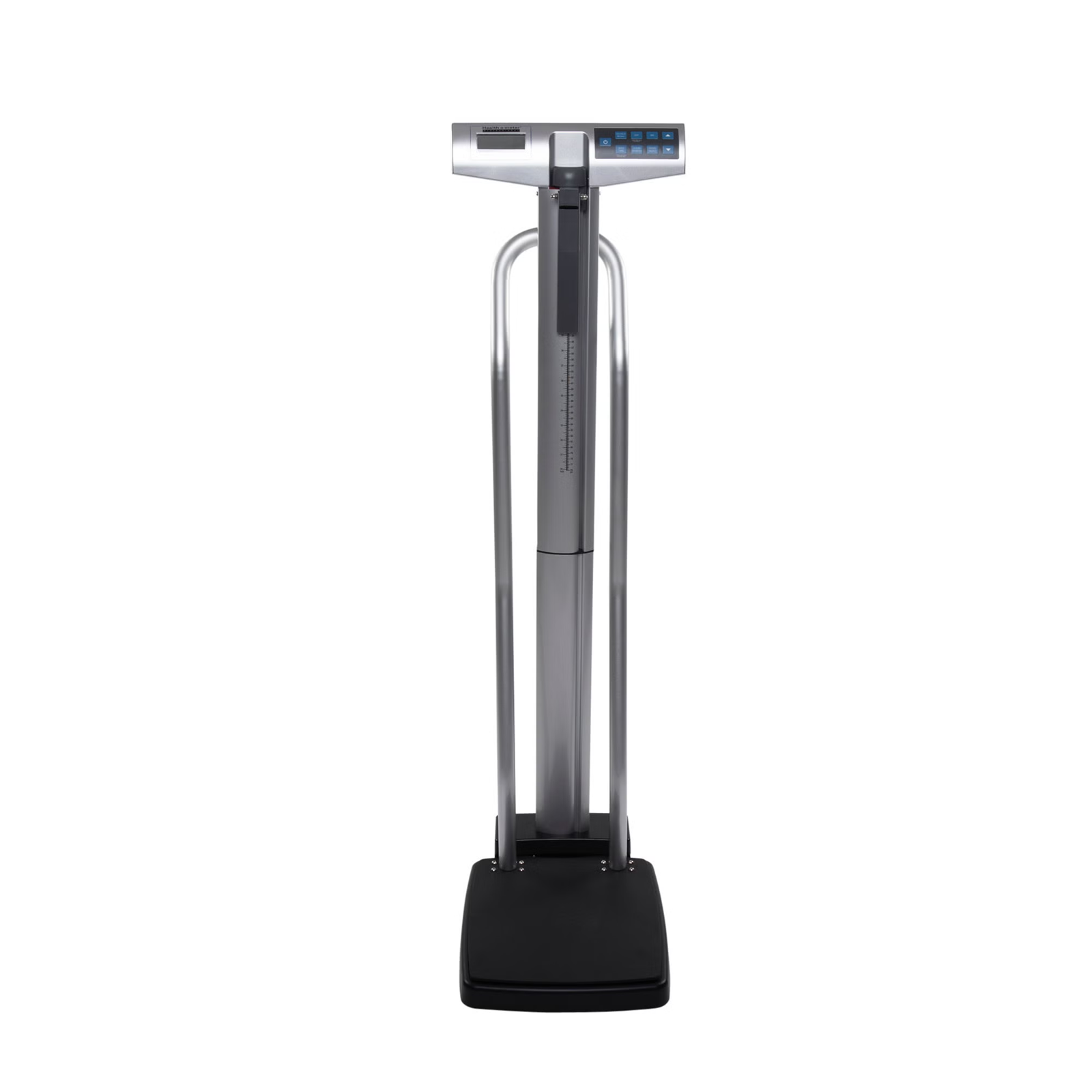

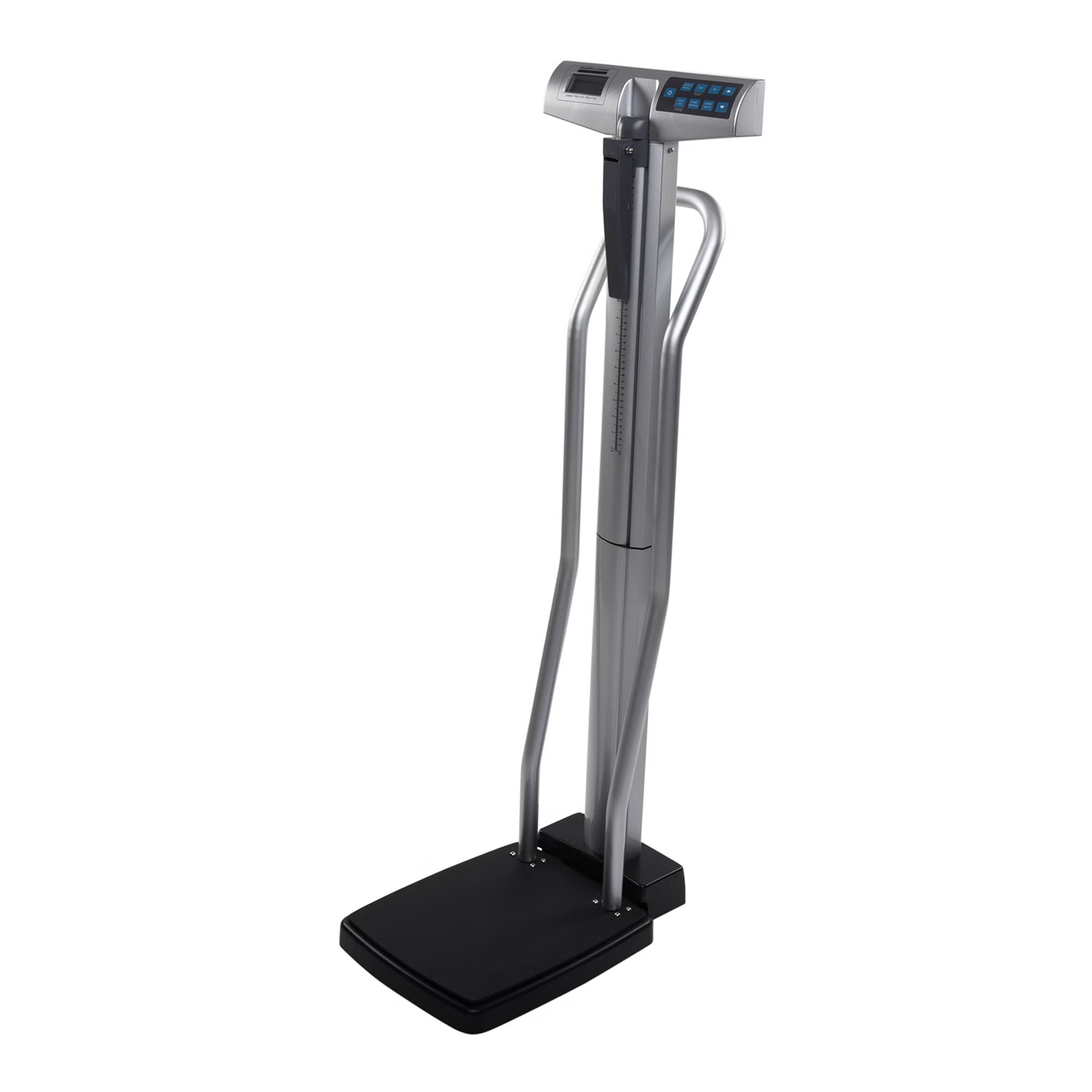

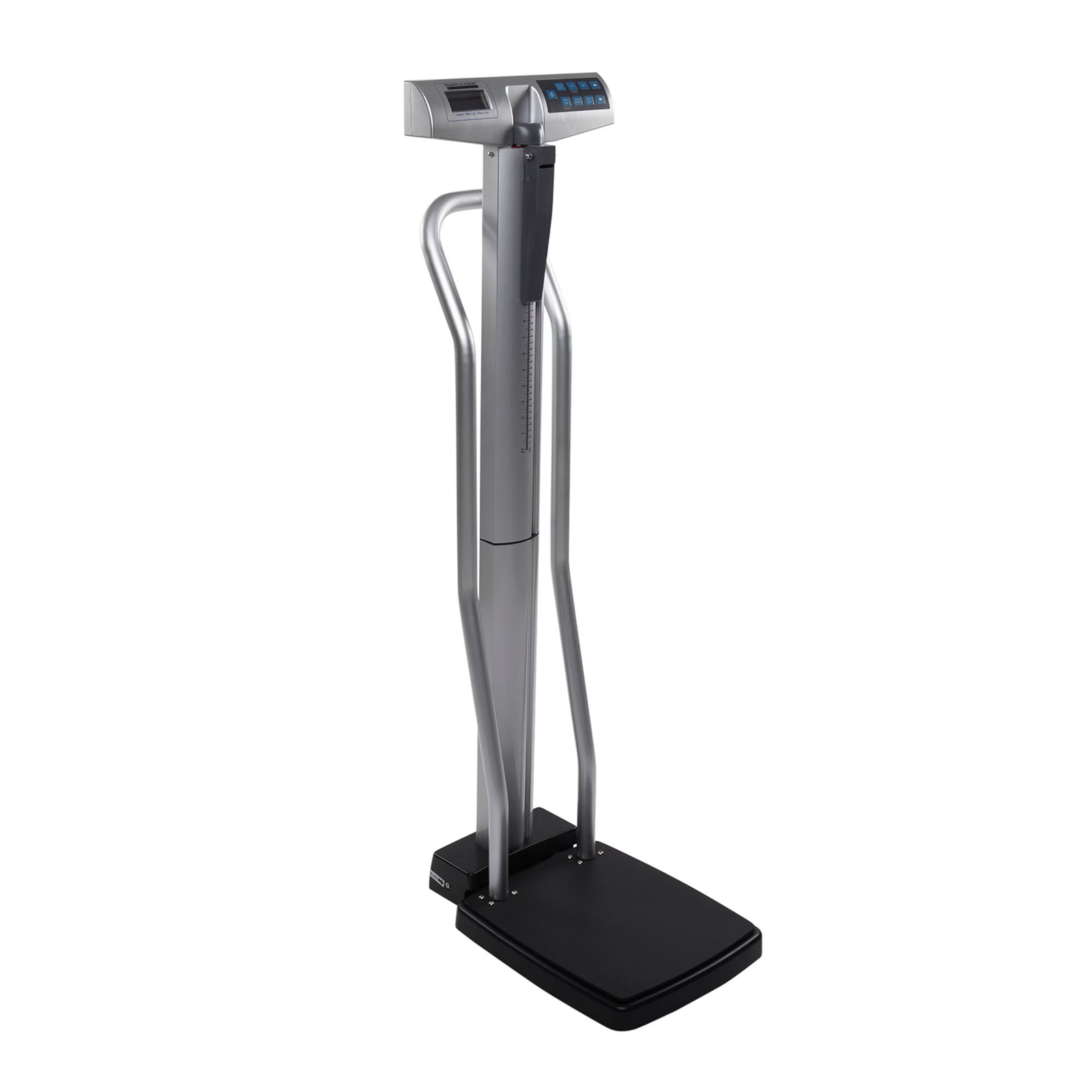

Health o meter 660 lb Physician Scale with Height Rod & Handlebars is an eye-level digital scale designed for primary care, physician offices, clinics, and other professional healthcare environments. The scale combines a 660 lb / 300 kg weighing capacity with a built-in mechanical height rod, large low-profile platform, and wrap-around handlebars that provide additional patient stability without interfering with weight measurement.
The digital interface supports weight measurement in pounds or kilograms along with BMI, tare, pre-tare, hold/release, reweigh, recall, parent/child weighing, and Everlock unit-lock functions. Integrated transport wheels simplify movement between clinical areas, while six AA batteries provide convenient cordless operation. Optional AC power and wireless connectivity accessories are available separately.
Key Features
| 660 lb Capacity | Built-In Height Rod | Wrap-Around Handlebars |
|---|
| Supports patients up to 300 kg | Measures patient height without a separate device | Helps provide additional standing stability |
| 0.2 lb Resolution | BMI Calculation | Low-Profile Platform |
|---|
| Supports precise professional weight measurement | Calculates body mass index | Minimal step-up height improves accessibility |
| Battery Operated | Transport Wheels | Optional Connectivity |
|---|
| Six AA batteries included | Two wheels simplify movement | Optional wireless technology supports compatible EMR workflows |
Specifications
| Attribute | Details | Attribute | Details |
|---|
| Brand | Health o meter Professional | Manufacturer | Health o meter Professional / Pelstar |
| MPN | 500KLHB | Product Type | Digital Physician Scale with Height Rod |
| Weight Capacity | 660 lb / 300 kg | Resolution | 0.2 lb / 0.1 kg |
| Display | 1 in. / 25 mm LCD | Platform Type | Step-On |
| Height Rod Range | 30–84-1/4 in. / 76–214 cm | Height Graduation | 1/8 in. / 1 mm |
| Platform Size | 13-3/4 × 16-1/2 × 2-3/8 in. | Product Weight | 31 lb / 15 kg |
| Overall Dimensions | Approx. 14-3/8 × 21-1/8 × 53-5/8 in. | Handlebars | Wrap-Around Stability Handlebars |
| BMI Function | Yes | Tare / Pre-Tare | Yes |
| Hold / Release | Yes | Reweigh / Recall | Yes |
| Parent / Child Mode | Yes | Everlock | Yes |
| Power Source | 6 AA Batteries Included | Optional AC Adapter | ADPT31 |
| EMR Connectivity | Optional Pelstar Wireless Technology | Transport Wheels | 2 |
| Product Packaging | EA | Minimum Selling Unit | EA |
| Warranty | 2-Year Limited Manufacturer Warranty | Country of Origin | China |
| BAA Compliant | No | TAA Compliant | No |
| UNSPSC | 42182805 | Clinical Category | Medical Scales |
The manufacturer currently confirms the 660 lb capacity, resolution, LCD display, battery configuration, height-rod range, platform dimensions, 31 lb product weight, connectivity options, functions, and two-year limited warranty. Country of origin, BAA/TAA status, and UNSPSC are listed in the current exact-SKU product record.
Warranty
Standard Manufacturer Warranty: 2 Years Limited
The current manufacturer specifications provide a two-year limited warranty for the 500KLHB.
Warnings
| Stable Placement | Patient Safety | Weight Capacity |
|---|
| Position the scale on a firm, level surface before use | Assist patients who require additional support when stepping on or off | Do not exceed the rated 660 lb / 300 kg capacity |
| Inspect Handlebars | Height Rod Use | Platform Condition |
|---|
| Ensure handlebars are securely installed before relying on them for stability | Move the height-rod headpiece carefully during measurements | Keep the platform dry, clean, and free of obstructions |
| Battery Maintenance | Cleaning | Service |
|---|
| Replace batteries according to manufacturer instructions | Follow approved cleaning procedures and avoid excessive liquid exposure | Remove malfunctioning equipment from service until appropriately inspected |
