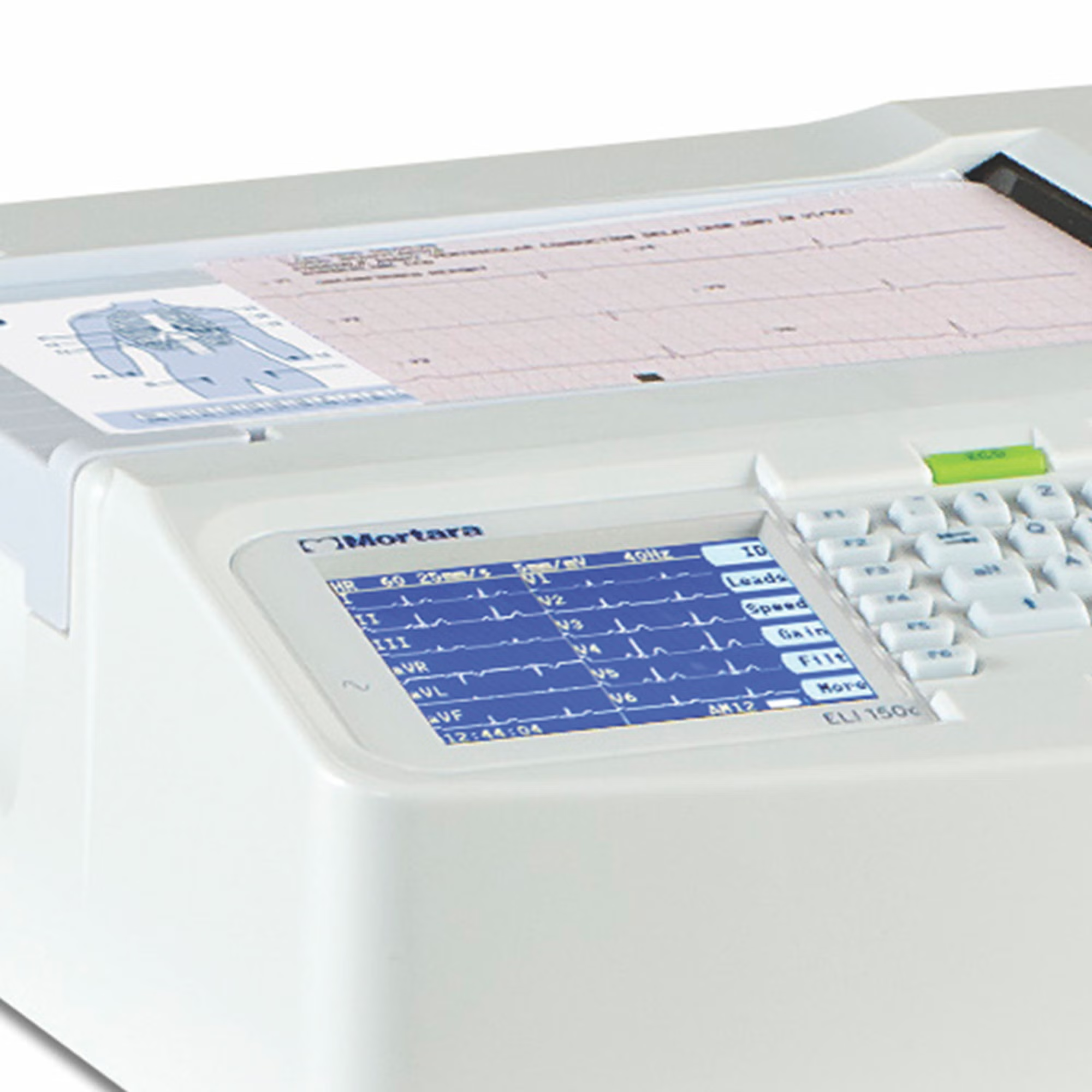

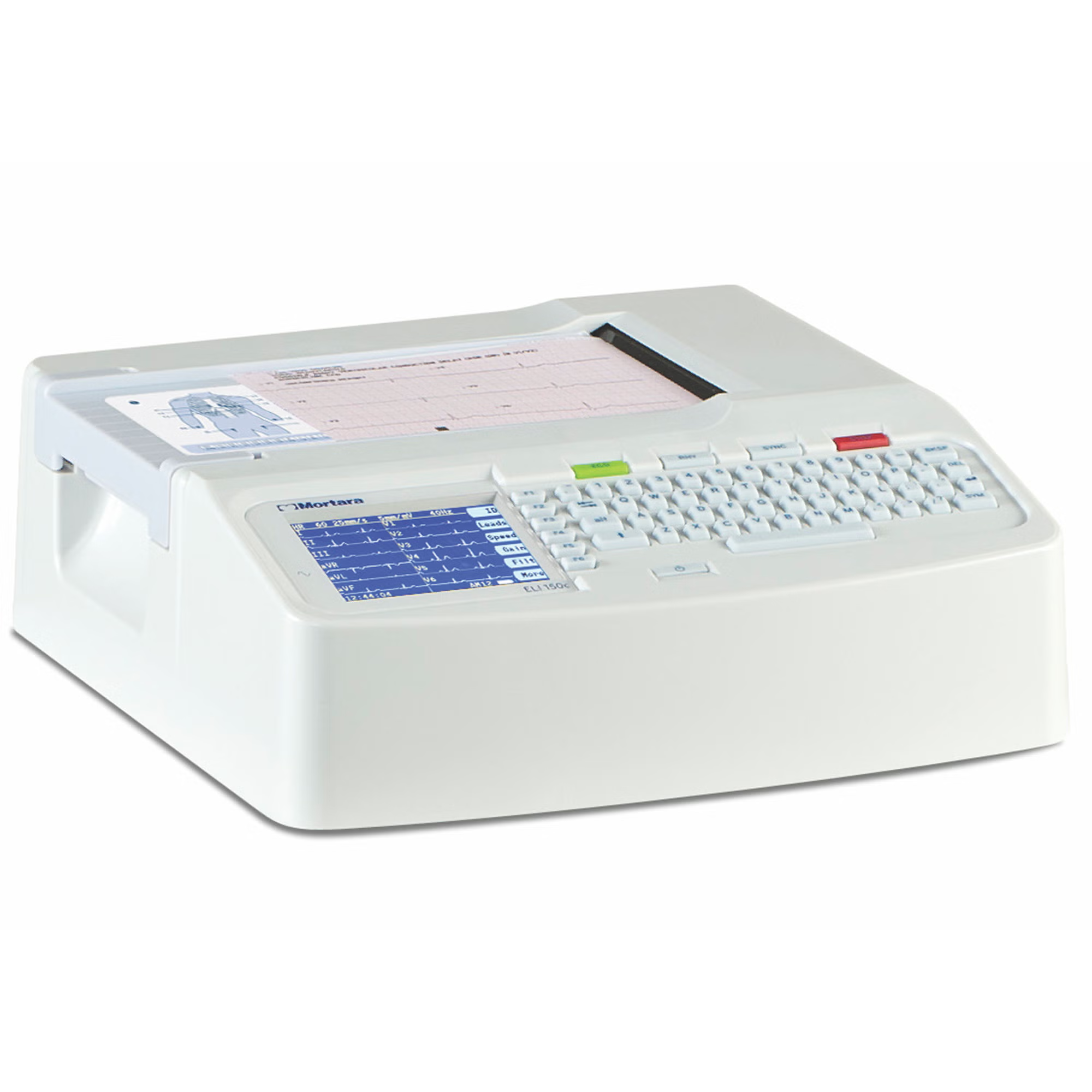

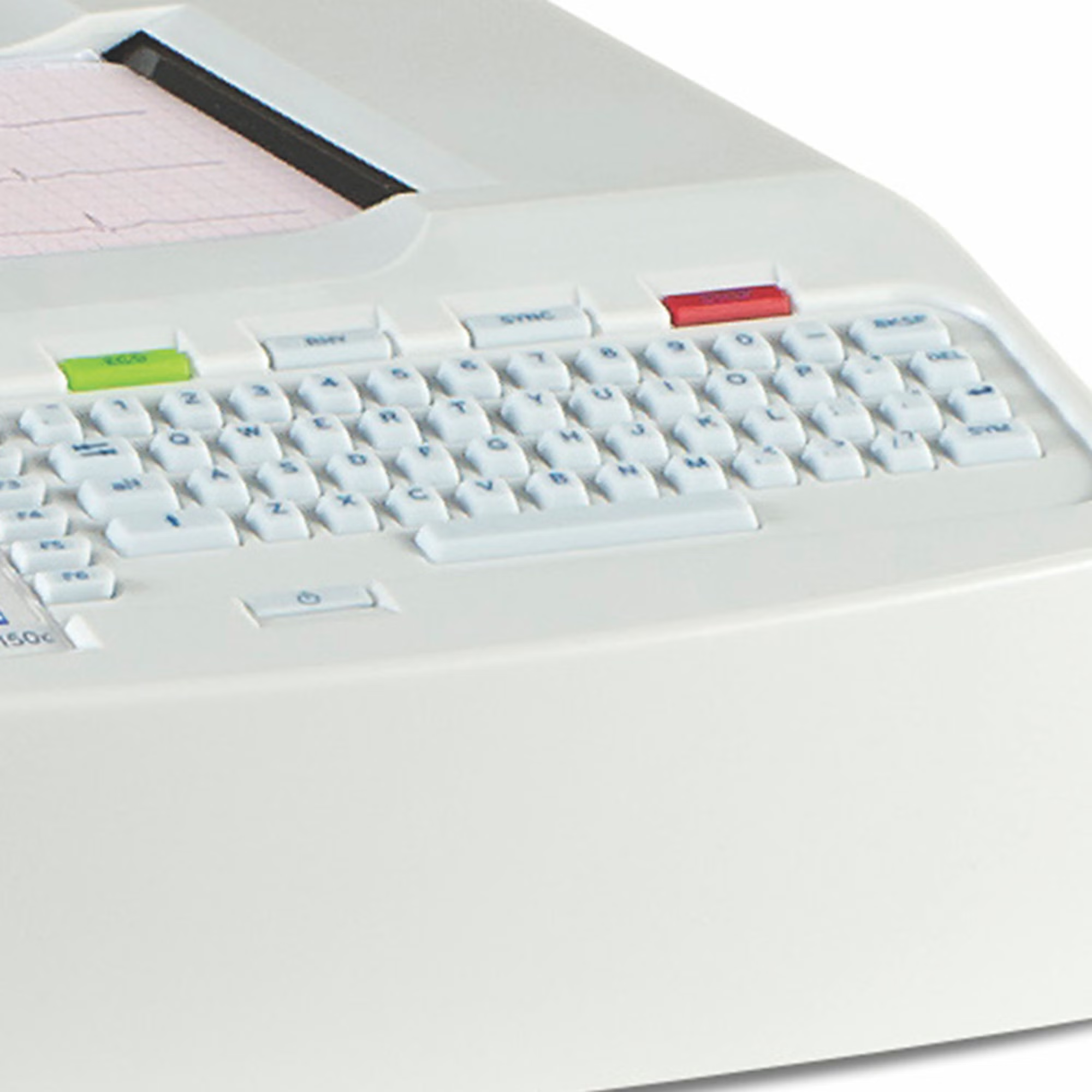

McKesson LUMEON / Burdick ELI 150c 12-Lead Resting ECG provides comprehensive resting electrocardiography in a compact, portable system designed for professional clinical environments. The high-resolution color LCD provides real-time 12-lead ECG preview and post-acquisition review, while the full alphanumeric keyboard and dedicated function controls support efficient patient-data entry, ECG acquisition, rhythm printing, and report transmission.
The ELI 150c incorporates VERITAS resting ECG interpretation with adult and pediatric criteria and Best 10 technology to identify a low-noise 10-second ECG segment from captured data. The wired AM12 acquisition module, internal ECG storage, integrated thermal recorder, USB and LAN connectivity, and rechargeable battery support flexible workflows in exam rooms, clinics, physician offices, and other diagnostic-care environments.
Key Features
| Simultaneous 12-Lead ECG | Color LCD Display | VERITAS Interpretation |
|---|
| Acquires all standard ECG leads simultaneously | Provides real-time waveform preview and post-acquisition review | Supports adult and pediatric ECG interpretation |
| Best 10 Technology | AM12 Acquisition Module | Internal ECG Storage |
|---|
| Selects a low-noise 10-second ECG segment from captured data | Wired acquisition module provides reliable patient connection | Stores up to 40 ECG records internally |
| Integrated Thermal Printer | USB & LAN Connectivity | AC / Battery Operation |
|---|
| Produces ECG reports directly from the system | Supports electronic data-transfer workflows | Rechargeable battery supports portable clinical use |
Specifications
| Attribute | Details | Attribute | Details |
|---|
| Brand | McKesson LUMEON / Burdick | Platform | ELI 150c |
| MPN | MLBUR150C-C1X | Product Type | Electrocardiograph |
| Application | Resting ECG | ECG Leads | 12 Lead |
| Acquisition | Simultaneous 12 Lead | Acquisition Module | Wired AM12 |
| Patient Population | Adult / Pediatric | Interpretation | VERITAS Resting ECG |
| Display | Color LCD | Display Resolution | 320 × 240 |
| ECG Storage | Up to 40 ECGs | Best 10 Technology | Yes |
| Recording Sampling Rate | 1,000 Samples/Sec/Channel | Pacemaker Detection Sampling | 40,000 Samples/Sec/Channel |
| Frequency Response | 0.05–300 Hz | A/D Conversion | 20 Bit |
| Thermal Printer | Integrated | Paper Width | 108 mm / 4 in. |
| Print Speeds | 5, 10, 25, 50 mm/sec | Gain Settings | 5, 10, 20 mm/mV |
| Keyboard | Full Alphanumeric | USB Connectivity | Yes |
| LAN Connectivity | Yes | Wireless LAN | Not Included in This Configuration |
| AC Power | 100–240 VAC, 50/60 Hz | Battery | Internal Rechargeable |
| Device Dimensions | 11.25 × 11.5 × 3.75 in. | Device Weight | 7.2 lb Including Battery |
| Latex Indicator | Not Made with Natural Rubber Latex | Optional Stand | Available Separately |
| Product Packaging | EA | Minimum Selling Unit | EA |
| UNSPSC | 42181701 | Clinical Category | Electrocardiography |
Included Components
| Component | Included |
|---|
| ELI 150c Electrocardiograph | Yes |
| AM12 ECG Acquisition Module | Yes |
| AHA Patient Cable with Banana Ends | Yes |
| ECG Lead Adapters | Yes |
| Starter Package of ECG Paper | Yes |
| US Power Cord | Yes |
| Adult & Pediatric Interpretation | Yes |
| ECG Storage Capability | Yes |
| User Manual | Yes |
Warnings
| Professional Use | Lead Placement | ECG Interpretation |
|---|
| Intended for operation by appropriately trained healthcare personnel | Verify correct electrode and lead placement before ECG acquisition | Computer-generated interpretation should be reviewed by a qualified clinician |
| Patient Cables | Electrical Safety | Battery Operation |
|---|
| Inspect acquisition modules, lead wires, and connectors before use | Use compatible power cords and approved accessories | Maintain and charge the internal battery according to product instructions |
| Cleaning & Disinfection | Recording Paper | Service |
|---|
| Follow approved equipment cleaning and disinfection procedures | Use compatible thermal ECG recording paper | Remove malfunctioning equipment from clinical use until properly evaluated |
