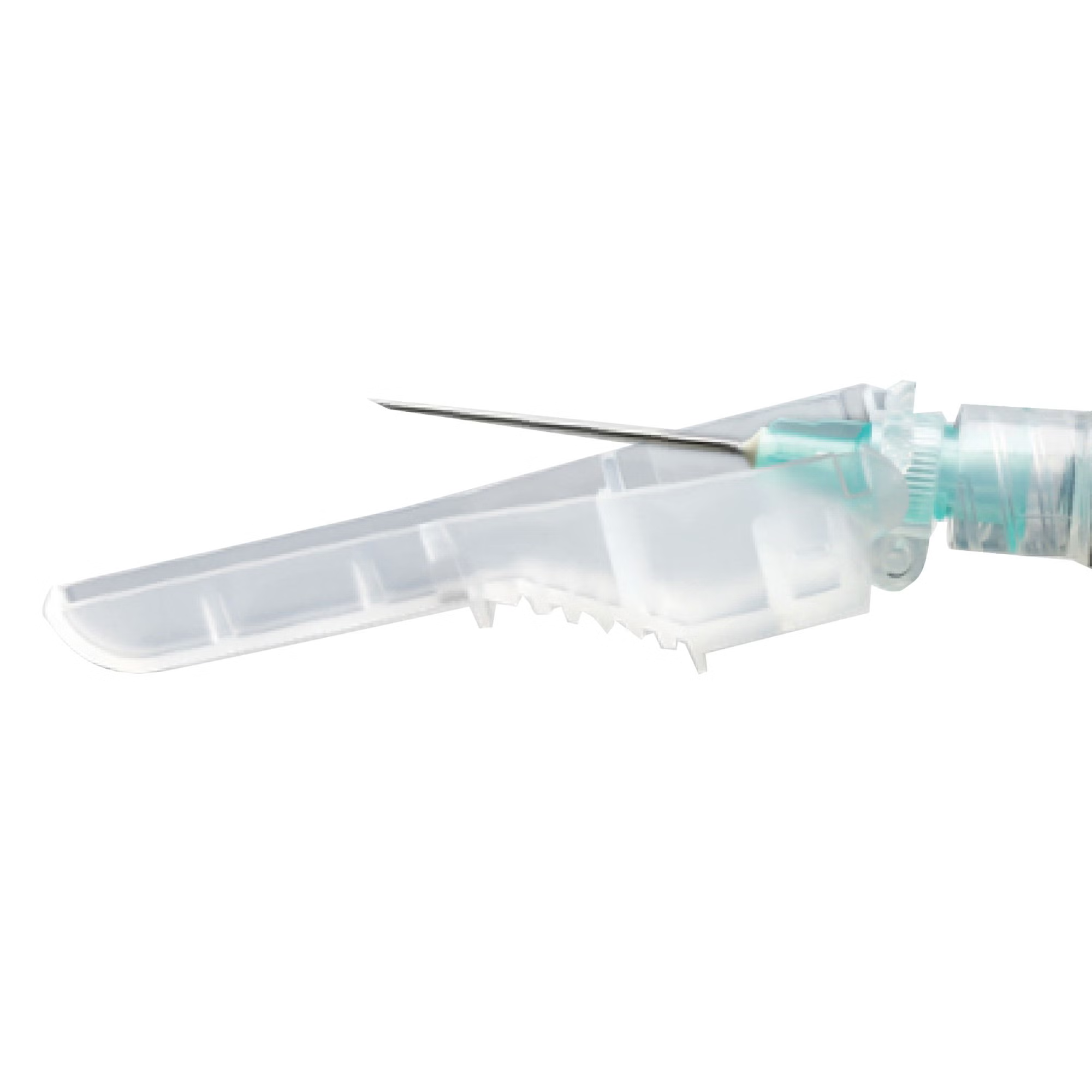

McKesson Prevent Hinged Safety Hypodermic Needles – BX/100 are designed for aspiration, injection, and medication-administration procedures using compatible conventional syringes. The integrated hinged safety shield provides a simple post-use protection mechanism that securely covers the needle and helps reduce exposure to an unprotected sharp during handling and disposal.
The safety mechanism can be activated with a finger, thumb, or against an appropriate hard surface and provides audible and tactile feedback when engaged. A bevel-up needle orientation supports low-angle injection techniques, while color-coded packaging, needle hubs, and safety hinges help healthcare professionals identify gauge size efficiently.
This variable product family includes needle configurations from 18G through 30G, with available lengths of 1/2 inch, 5/8 inch, 1 inch, and 1-1/2 inches depending on gauge. Each sterile, single-use needle is individually packaged and designed for use with compatible standard Luer Lock and slip-tip syringes.
Key Features
| Hinged Safety Shield | Single-Hand Activation | Secure Locking Mechanism |
|---|
| Protective shield covers the needle following use | Designed for finger, thumb, or hard-surface activation | Helps reduce accidental needlestick exposure |
| Audible & Tactile Feedback | Bevel-Up Orientation | Double-Bevel Needle |
|---|
| Provides confirmation when safety mechanism engages | Supports low-angle injection techniques | Designed for smooth penetration during appropriate procedures |
| Color-Coded Identification | Broad Gauge Selection | Multiple Needle Lengths |
|---|
| Hub, safety hinge, and packaging support gauge identification | Available from 18G through 30G | Selected 1/2, 5/8, 1 and 1-1/2 inch configurations |
| Standard Luer Compatibility | Sterile Single Use | Individually Packaged |
|---|
| Compatible with conventional Luer Lock and slip-tip syringes | Intended for one-time professional use | Each needle remains protected until opened |
Specifications
| Attribute | Details | Attribute | Details |
|---|
| Brand | McKesson Prevent | Manufacturer | McKesson |
| Product Type | Safety Hypodermic Needle | MPN | Varies by Variant |
| Application | Aspiration / Medication Administration / Injection | Safety Feature | Hinged Safety Needle |
| Available Gauges | 18G, 20G, 21G, 22G, 23G, 25G, 27G, 30G | Available Lengths | 1/2 in., 5/8 in., 1 in., 1-1/2 in. |
| Needle Style | Straight | Needle Material | Stainless Steel |
| Needle Point | Beveled Tip / Bevel Up | Bevel Type | Double Bevel |
| Hub Connection | Standard Luer Connection | Syringe Compatibility | Luer Lock / Slip Tip |
| Hub Material | Plastic | Wall Type | Varies by Variant |
| Safety Activation | Finger, Thumb or Hard Surface | Activation Feedback | Audible / Tactile |
| Sterility | Sterile | Usage | Disposable / Single Use |
| Pyrogen Status | Non-Pyrogenic | Toxicity | Non-Toxic |
| DEHP | DEHP-Free | Latex Indicator | Not Made with Natural Rubber Latex |

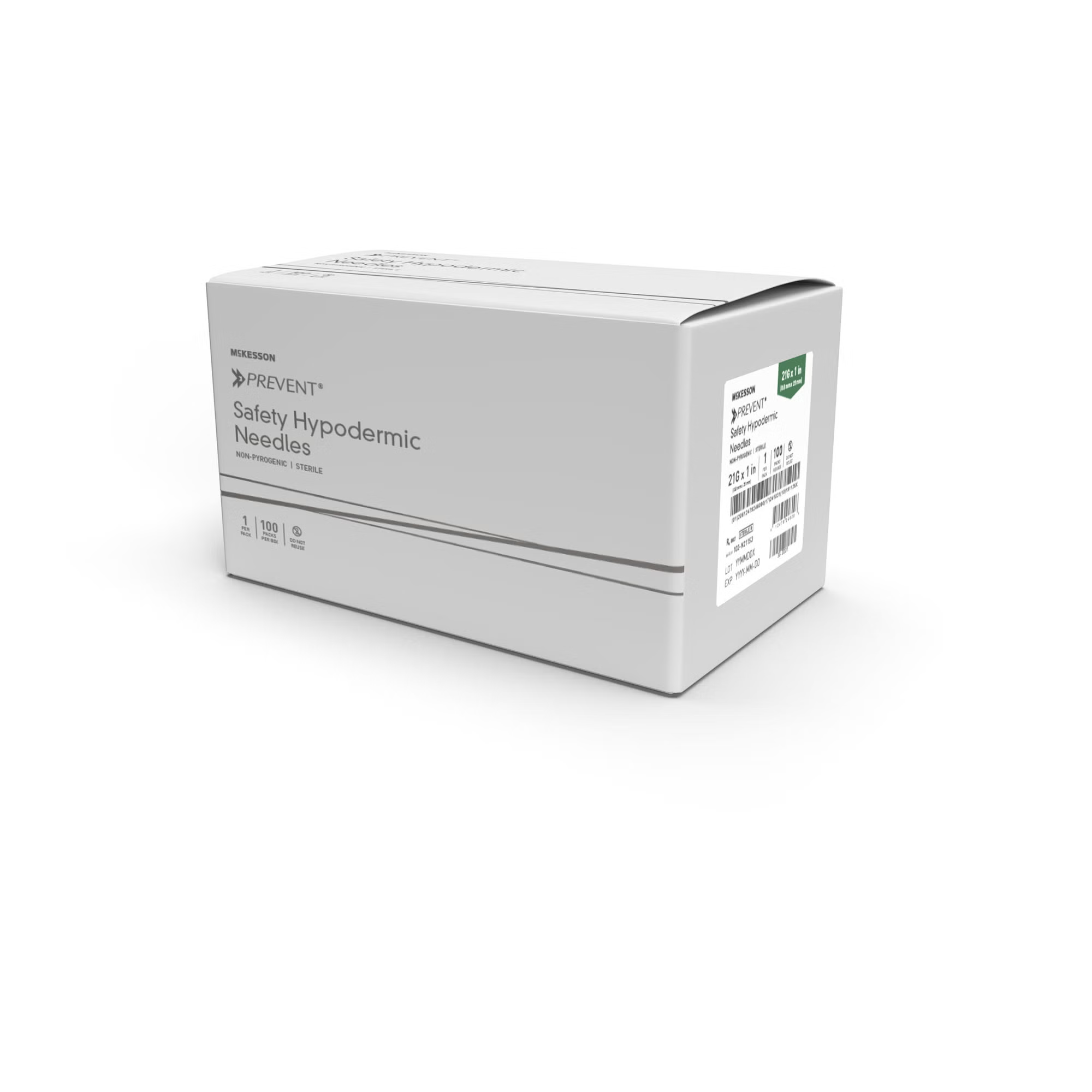

| Box Packaging | BX/100EA | Master Case | CS/8BX/100EA |
| Needles per Case | 800 | Minimum Selling Unit | BX/100EA |
| UNSPSC | 42142523 | Clinical Category | Hypodermic / Safety Needles |
Variant Options
| Gauge | Needle Length | MPN | Packaging |
|---|
| 18G | 1 in. | 102-N181S3 | BX/100EA |
| 18G | 1-1/2 in. | 102-N18105S3 | BX/100EA |
| 20G | 1 in. | 102-N201S3 | BX/100EA |
| 21G | 1 in. | 102-N211S3 | BX/100EA |
| 21G | 1-1/2 in. | 102-N21105S3 | BX/100EA |
| 22G | 1 in. | 102-N221S3 | BX/100EA |
| 22G | 1-1/2 in. | 102-N22105S3 | BX/100EA |
| 23G | 1 in. | 102-N231S3 | BX/100EA |
| 23G | 1-1/2 in. | 102-N23105S3 | BX/100EA |
| 25G | 5/8 in. | 102-N2558S3 | BX/100EA |
| 25G | 1 in. | 102-N251S3 | BX/100EA |
| 25G | 1-1/2 in. | 102-N25105S3 | BX/100EA |
| 27G | 1/2 in. | 102-N2705S3 | BX/100EA |
| 30G | 1/2 in. | 102-N3005S3 | BX/100EA |
Warnings
| Single Use | Sharps Safety | Sterile Integrity |
|---|
| Do not reuse disposable needles | Use appropriate sharps precautions before and after activation | Do not use if individual packaging is damaged or compromised |
| Activate Safety Shield | Verify Gauge & Length | Secure Syringe Connection |
|---|
| Engage the hinged protective shield promptly following use | Confirm the appropriate needle configuration before the procedure | Ensure the needle is securely connected to the compatible syringe |
| Sharps Disposal | High-Pressure Injection | Professional Use |
|---|
| Dispose of used needles in an approved sharps container | Not intended for high-pressure injection of contrast media | Use according to applicable professional clinical procedures |
