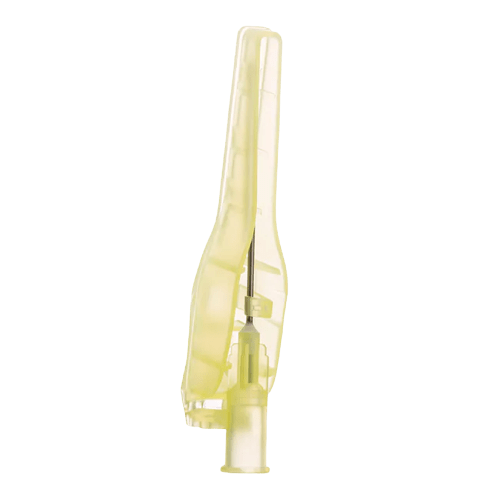

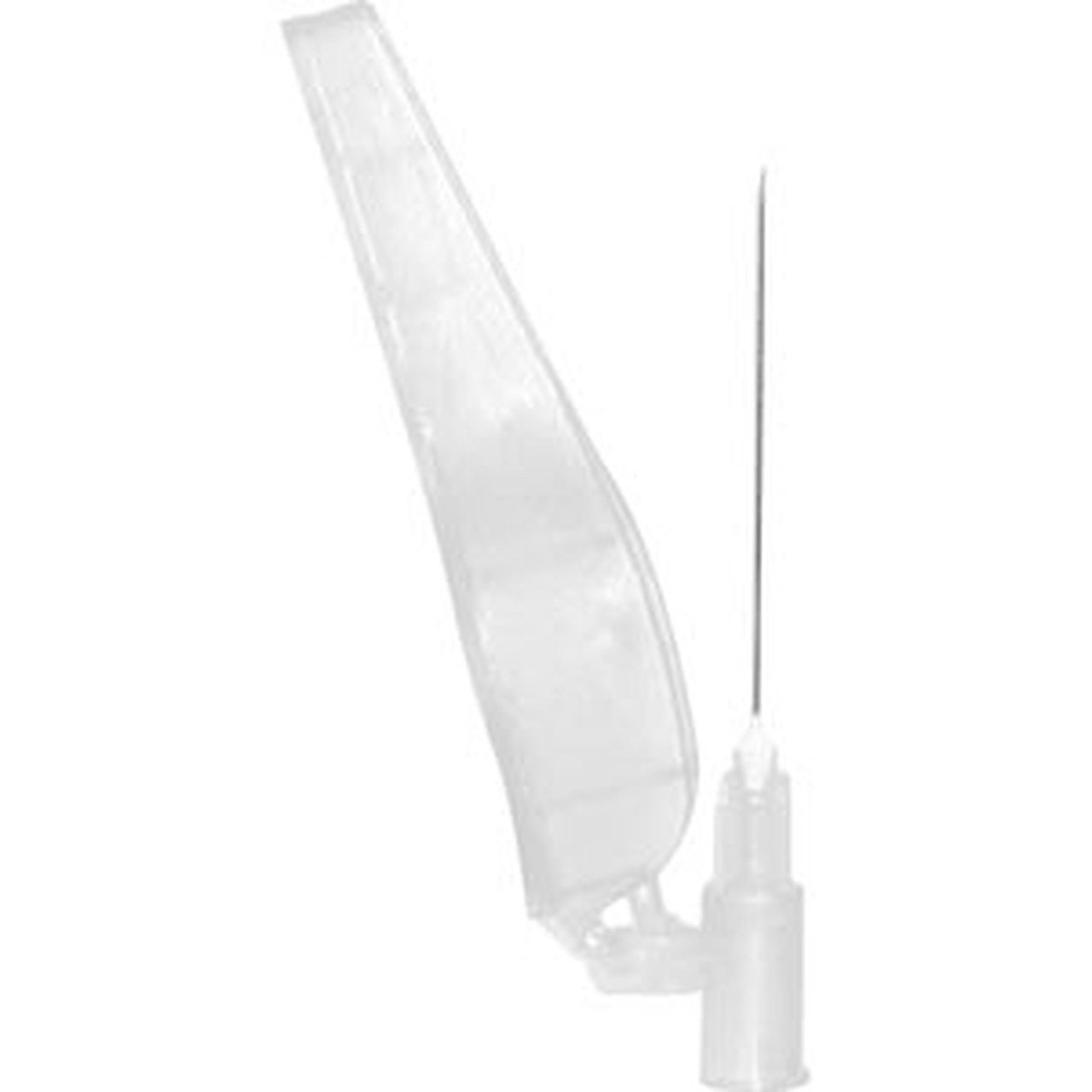

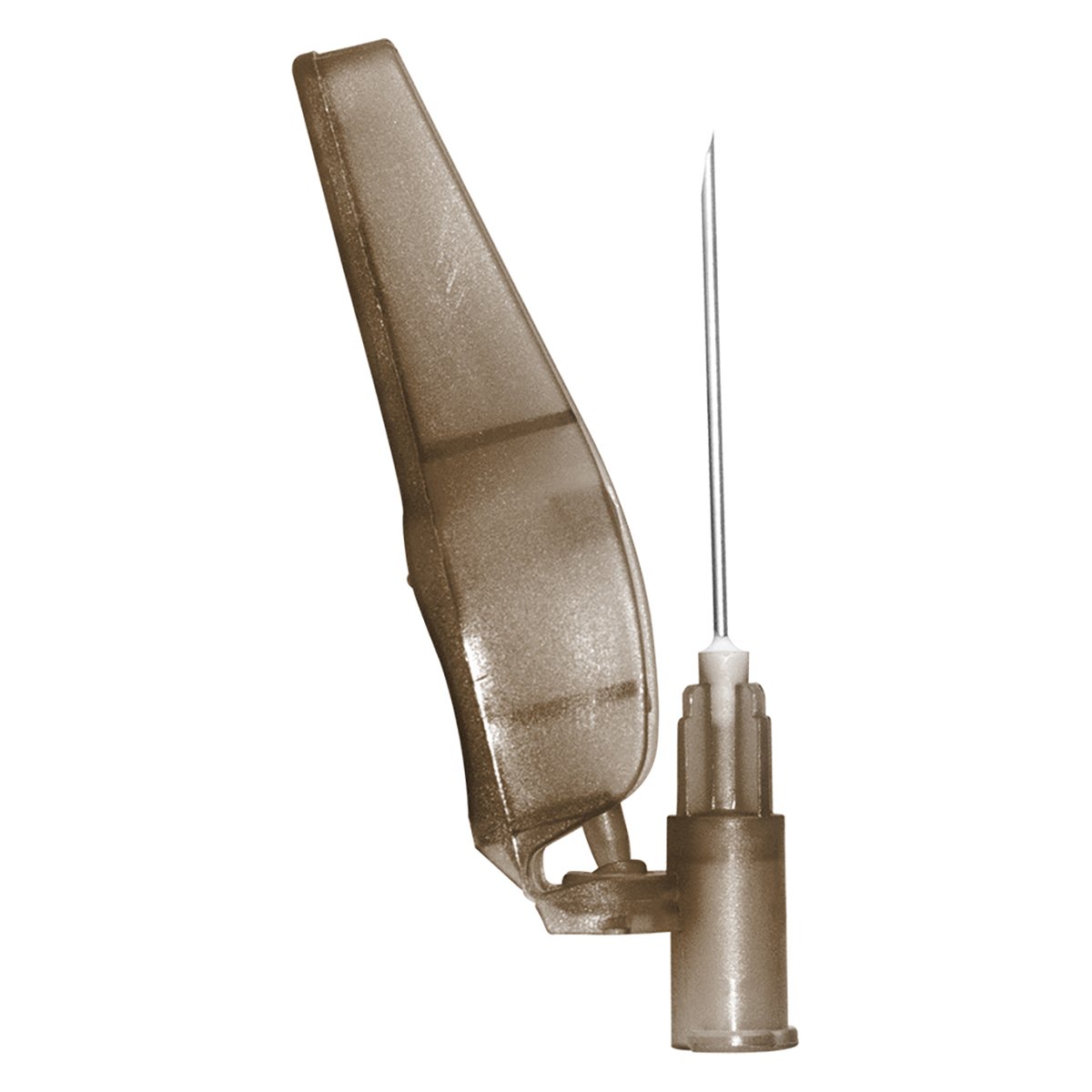

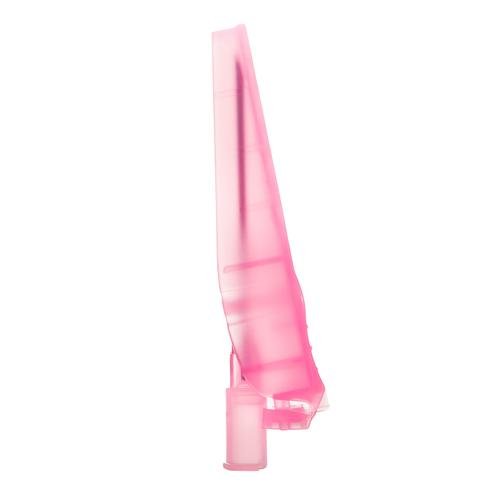

Sol-Care Safety Needle 18G–30G, Multiple Lengths – BX/100 is a safety-engineered hypodermic needle family designed for professional injection and medication-delivery procedures. Each needle incorporates a pivoting protective shield that can be activated using a hard surface or thumb technique and locks over the needle after use. An audible click provides confirmation that the safety mechanism has engaged.
The protective arm is designed to maintain visibility of the injection site, while the bevel-up needle orientation supports low-angle injection technique. Gauge-specific color coding assists with rapid size identification, and the needles are compatible with standard Luer Lock and Luer Slip Tip syringes. Multiple gauge and length combinations allow healthcare facilities to select the configuration appropriate for their procedural requirements.
Key Features
| Pivoting Safety Shield | Audible Lock Confirmation | One-Handed Activation |
|---|
| Covers the needle after use | Audible click confirms shield engagement | Supports thumb or hard-surface activation |
| Multiple Gauges | Multiple Needle Lengths | Luer Compatibility |
|---|
| Available from 18G through 30G | 1/2, 5/8, 1 and 1-1/2 in. options | Compatible with standard Luer Lock and Slip Tip syringes |
| Color-Coded Identification | Bevel-Up Needle | Sterile Single Use |
|---|
| Gauge-specific colors support quick identification | Supports visibility and low-angle injection technique | Designed for disposable professional use |
The manufacturer's current product information confirms the safety-shield design, activation methods, audible locking feature, color coding, injection-site visibility, and bevel-up orientation.
Specifications
| Attribute | Details | Attribute | Details |
|---|
| Brand | Sol-Care | Manufacturer | Sol-Millennium Medical |
| MPN | Varies by Variant | Product Type | Safety Hypodermic Needle |
| Gauge Range | 18G–30G | Length Range | 1/2 in. to 1-1/2 in. |
| Needle Material | Stainless Steel | Hub Material | Plastic |
| Needle Point | Bevel Up | Style | Straight |
| Safety Feature | Pivoting / Hinged Safety Shield | Activation | Thumb or Hard Surface |
| Lock Confirmation | Audible Click | Syringe Connection | Standard Luer Connection |
| Syringe Compatibility | Luer Lock / Luer Slip Tip | Wall Type | Regular Wall |
| Sterility | Sterile | Usage | Disposable / Single Use |
| Latex Indicator | Not Made with Natural Rubber Latex | Product Packaging | CS/8BX/100EA |
| Needles per Box | 100 | Needles per Case | 800 |
| Minimum Selling Unit | BX/100EA | UNSPSC | 42142523 |
Current device/product records identify the family as sterile, disposable, standard-Luer compatible, with stainless-steel needle construction, plastic hub, and hinged safety mechanism.
Variant Options
Primary Option: Gauge
Secondary Option: Needle Length
| Gauge | Needle Length | MPN | Gauge Color | Packaging |
|---|
| 18G | 1 in. | SN1810 | Pink | BX/100EA |
| 18G | 1-1/2 in. | SN1815 | Pink | BX/100EA |

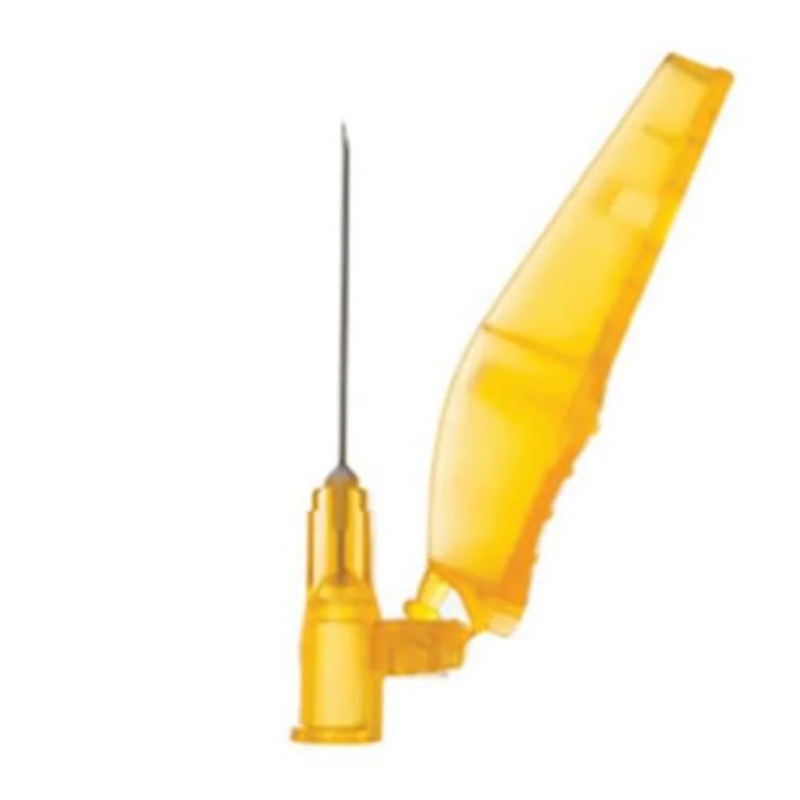

| 20G | 1-1/2 in. | SN2015 | Yellow | BX/100EA |

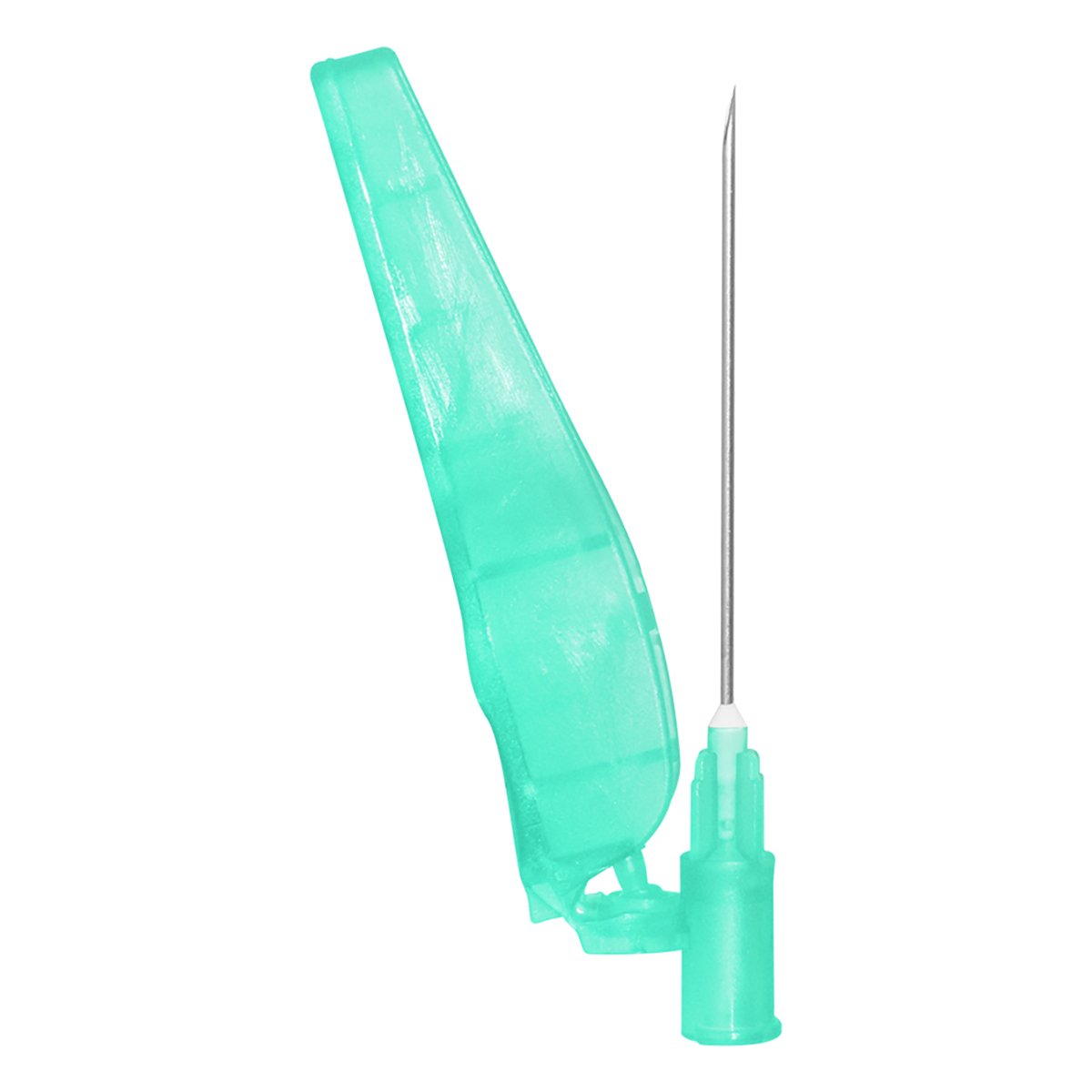

| 21G | 1 in. | SN2110 | Green | BX/100EA |
| 21G | 1-1/2 in. | SN2115 | Green | BX/100EA |
| 22G | 1 in. | SN2210 | Black | BX/100EA |
| 22G | 1-1/2 in. | SN2215 | Black | BX/100EA |

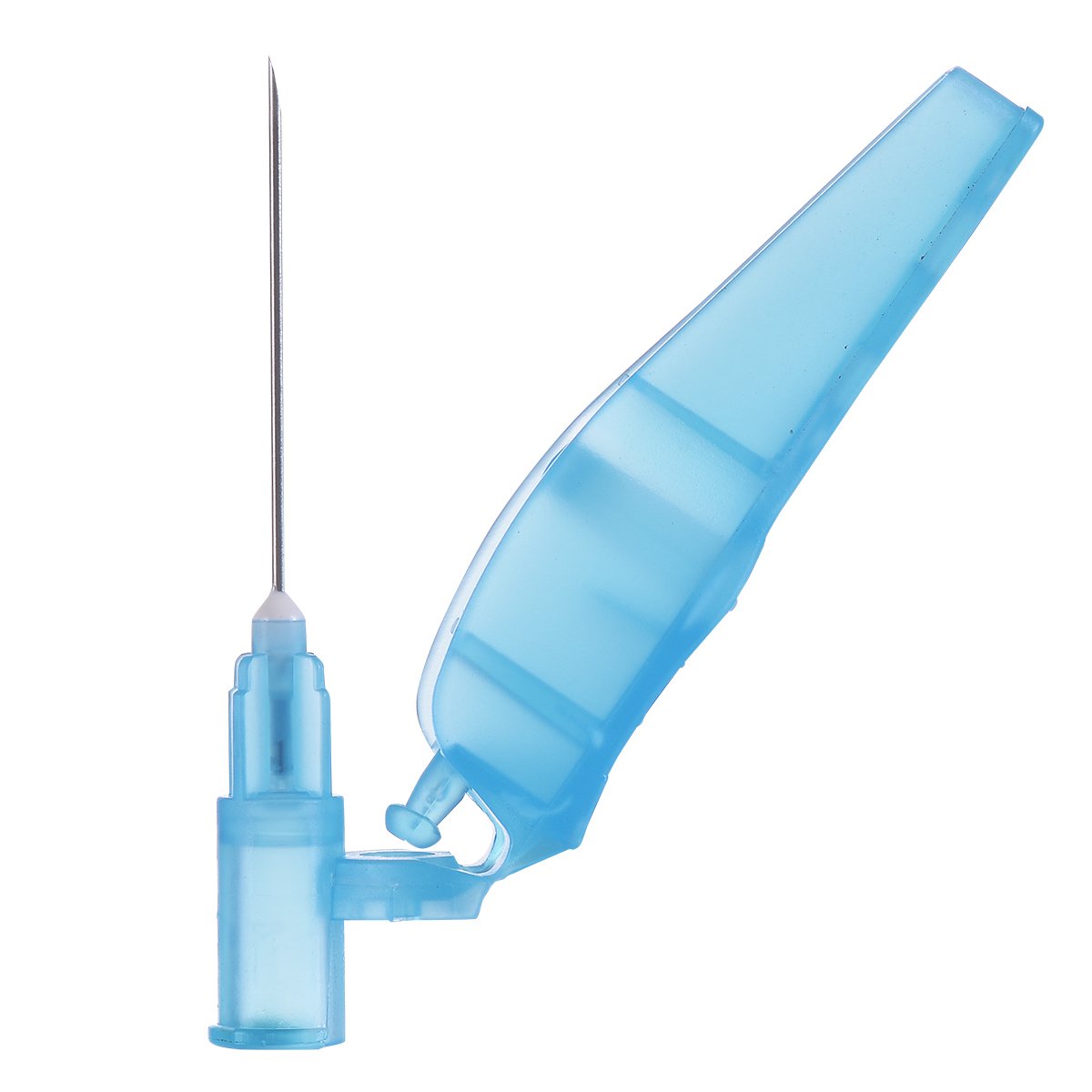

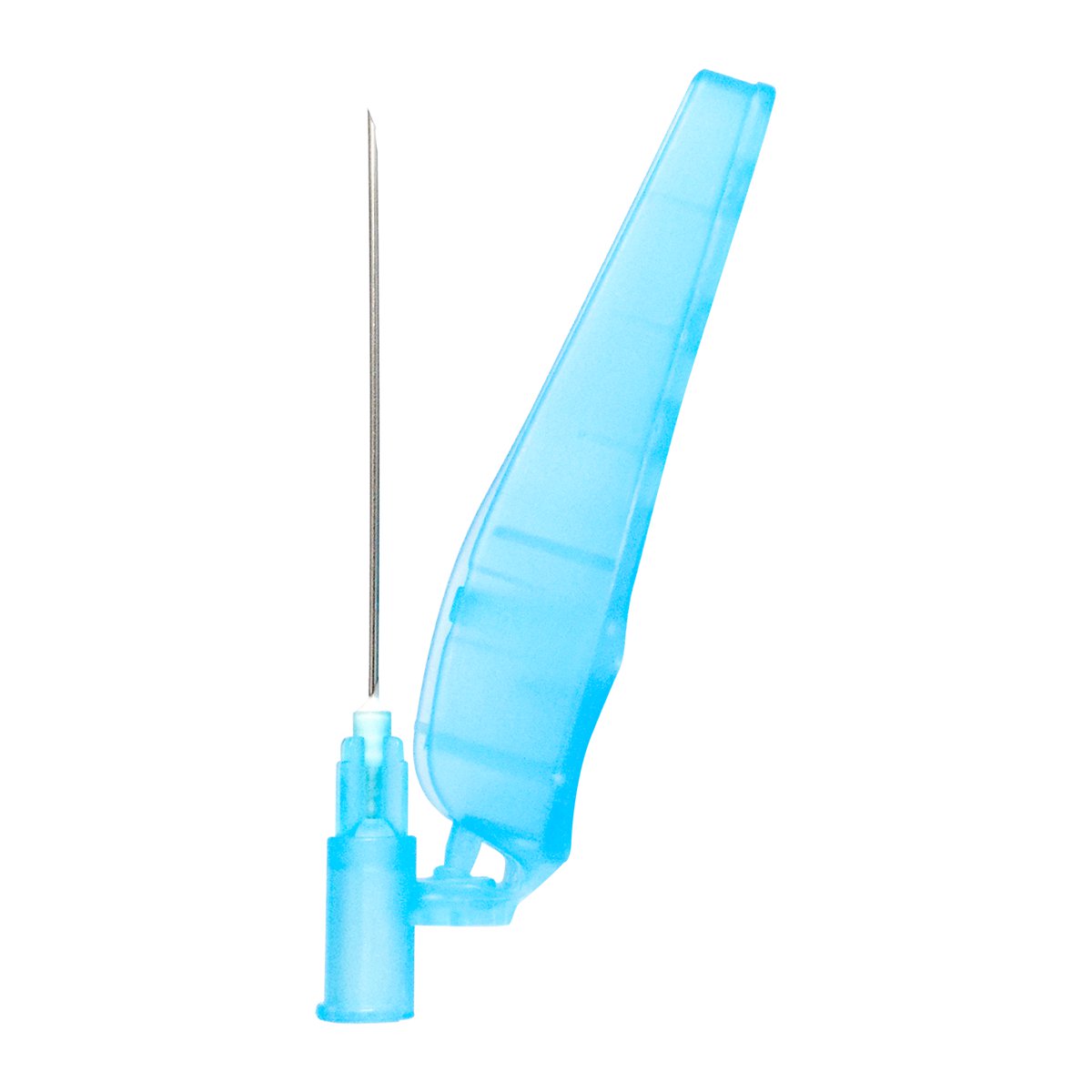

| 23G | 1 in. | SN2310 | Blue | BX/100EA |
| 23G | 1-1/2 in. | SN2315 | Blue | BX/100EA |

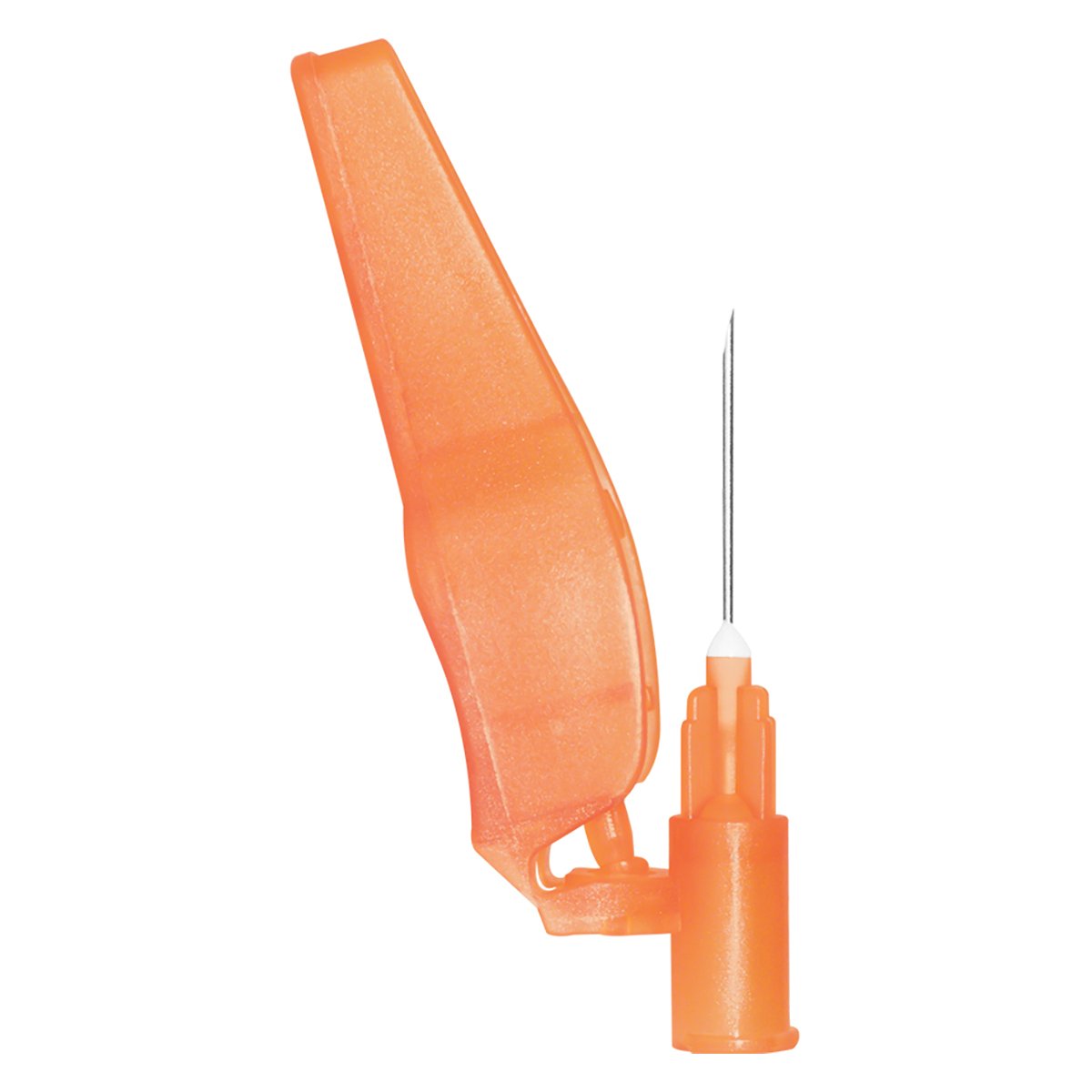

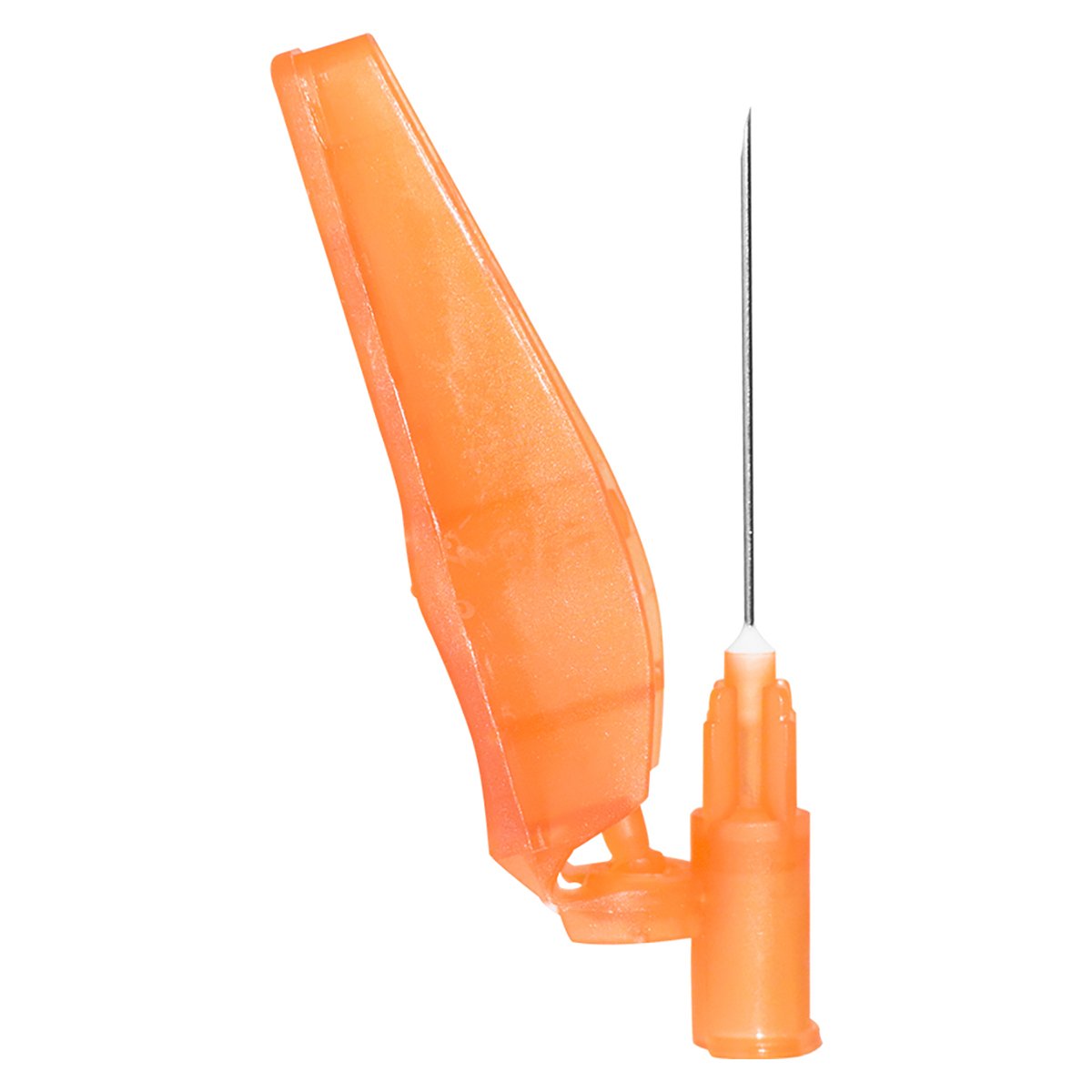

| 25G | 1 in. | SN2510 | Orange | BX/100EA |
| 25G | 1-1/2 in. | SN2515 | Orange | BX/100EA |
| 25G | 5/8 in. | SN2558 | Orange | BX/100EA |
| 27G | 1/2 in. | SN2712 | Gray | BX/100EA |
| 30G | 1/2 in. | SN3012 | Yellow | BX/100EA |
The 14 configurations and 100/box, 800/case packaging are confirmed in the current Sol-Millennium catalog. Public professional catalog data also confirms the gauge-specific color coding shown above.
Warnings
| Single Use | Sharps Safety | Sterile Package Integrity |
|---|
| Do not reuse the needle | Activate the safety shield immediately after use | Do not use if the sterile package is damaged or compromised |
| Confirm Safety Lock | Correct Size Selection | Biological Safety |
|---|
| Verify the audible click and complete shield engagement | Select gauge and length appropriate for the intended procedure | Treat used needles as potentially contaminated sharps |
| Avoid Recapping | Sharps Disposal | Professional Technique |
|---|
| Avoid manual recapping after patient use | Dispose promptly in an approved sharps container | Follow applicable injection and medication-administration procedures |
