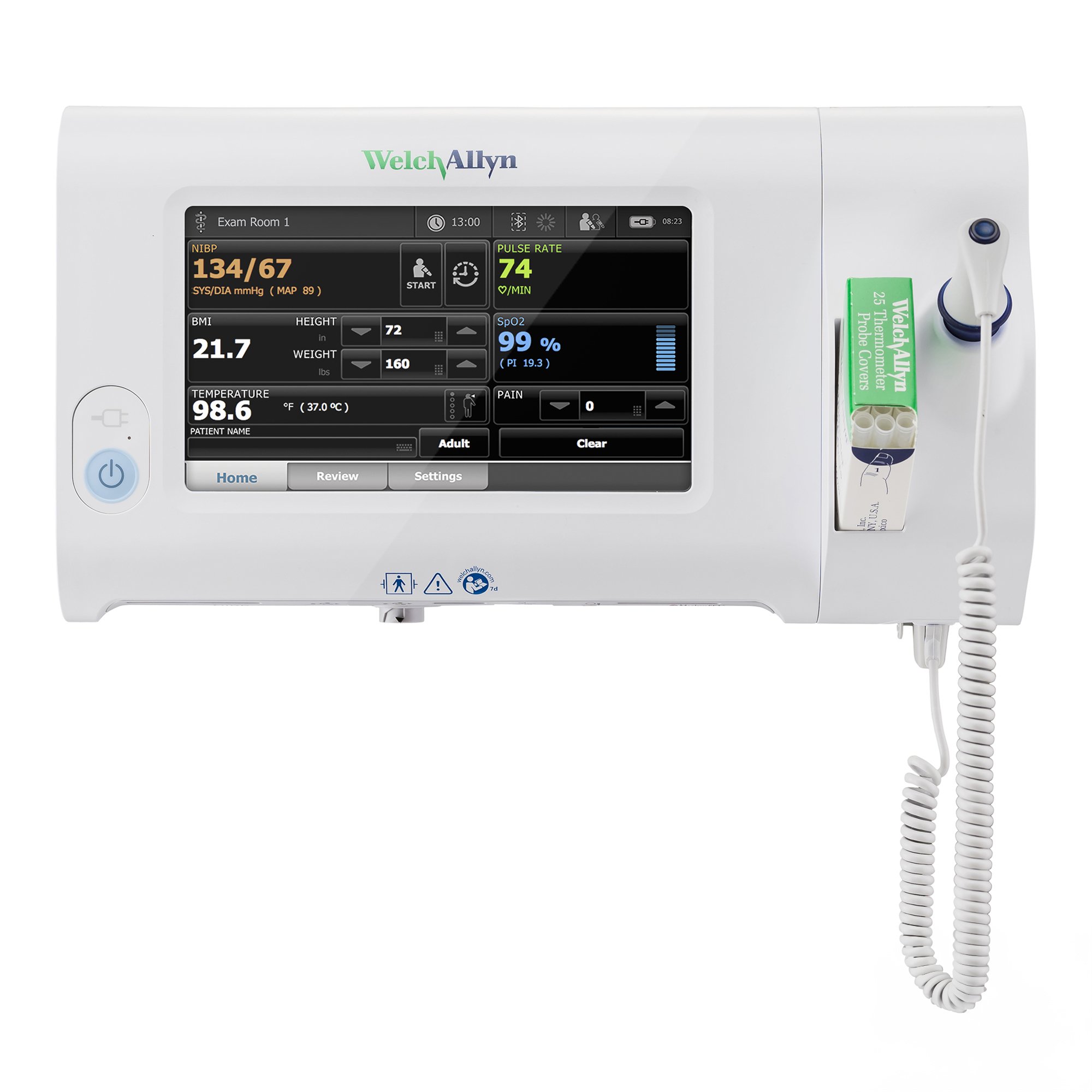

Welch Allyn Connex Spot Monitor NIBP, SpO2 & SureTemp Plus provides an integrated vital-sign monitoring solution for professional clinical environments. MPN 71WT-B combines SureBP noninvasive blood pressure measurement, Nonin pulse oximetry, SureTemp Plus thermometry, and pulse-rate monitoring in a compact touchscreen platform designed for both spot-check and timed-interval workflows.
The monitor supports adult, pediatric, and neonatal patient populations and incorporates blood-pressure averaging and configurable clinical documentation functions. The integrated rechargeable battery supports portable operation between exam rooms and patient-care areas while AC power provides continuous stationary operation when required.
Key Features
| SureBP NIBP | Nonin SpO2 | SureTemp Plus |
|---|
| Automated noninvasive blood pressure measurement | Integrated oxygen-saturation and pulse monitoring | Rapid professional temperature measurement |
| Spot & Interval Monitoring | Color Touchscreen | BP Averaging |
|---|
| Supports spot-check and timed-interval workflows | Simplified touchscreen operation | Helps support standardized multiple-reading assessment |
| Multiple Patient Populations | AC / Battery Operation | Compact Platform |
|---|
| Adult, pediatric, and neonatal support | Rechargeable portable operation with AC supply | Designed for exam rooms and clinical environments |
These platform capabilities and the exact 71WT-B SureBP, SureTemp Plus, and Nonin configuration are confirmed in Baxter's current Connex Spot Monitor technical specifications.
Specifications
| Attribute | Details | Attribute | Details |
|---|
| Brand | Welch Allyn Connex | Manufacturer | Baxter |
| MPN | 71WT-B | Product Type | Vital Signs / Patient Monitor |
| Series | Connex Spot Monitor 7100 | Monitoring Mode | Spot Check / Timed Intervals |
| NIBP Technology | SureBP | SpO2 Technology | Nonin |
| Thermometry | SureTemp Plus | Pulse Rate | Yes |
| Patient Population | Adult / Pediatric / Neonatal | Blood Pressure Averaging | Yes |
| Temperature Range | 80–110°F / 26.7–43.3°C | Oral Temperature Time | Approx. 4–6 Seconds |
| SpO2 Measurement Range | 1–100% | Nonin Pulse Range | 40–240 bpm |
| AC Power Supply | 15V, 2.33A | Battery | Integrated Rechargeable |
| Battery Runtime | Up to Approx. 12 Hours | Battery Recharge Time | Approx. 4 Hours |
| Device Dimensions | 9.2 W × 6.3 H × 2.3 D in. | Device Weight | Approx. 2.9 lb. |
| Wireless Configuration | Base Model | Bluetooth / Wi-Fi | Not Integrated in 71 Series |
| Power Configuration | North American Plug | Product Packaging | EA |
| Minimum Selling Unit | EA | Standard Warranty | 2 Years |
Baxter's current specification sheet supports the clinical, electrical, mechanical, patient-population, SpO2, temperature, and NIBP specifications above. Its current configuration document identifies 71WT-B specifically as the base model with Nonin SpO2, SureTemp Plus, and North American plug.
Warranty
Standard Manufacturer Warranty: 2 Years
Baxter's current Connex Spot Monitor service documentation identifies the standard warranty as a two-year basic depot-repair warranty, with optional extended service programs available separately.
Warnings
| Professional Use | Correct Patient Settings | Compatible Accessories |
|---|
| Intended for use by appropriately trained healthcare personnel | Select appropriate patient type and measurement settings | Use compatible cuffs, probes, sensors, batteries, and power components |
| SpO2 Sensor Integrity | Blood Pressure Cuff Selection | Electrical Safety |
|---|
| Do not use damaged sensors, connectors, or cables | Use an appropriately sized compatible cuff | Use approved AC power equipment and inspect cords before use |
| Cleaning & Disinfection | Battery Management | Service |
|---|
| Follow validated cleaning and disinfection procedures | Charge and maintain the battery according to device instructions | Refer repairs and servicing to appropriately qualified personnel |
