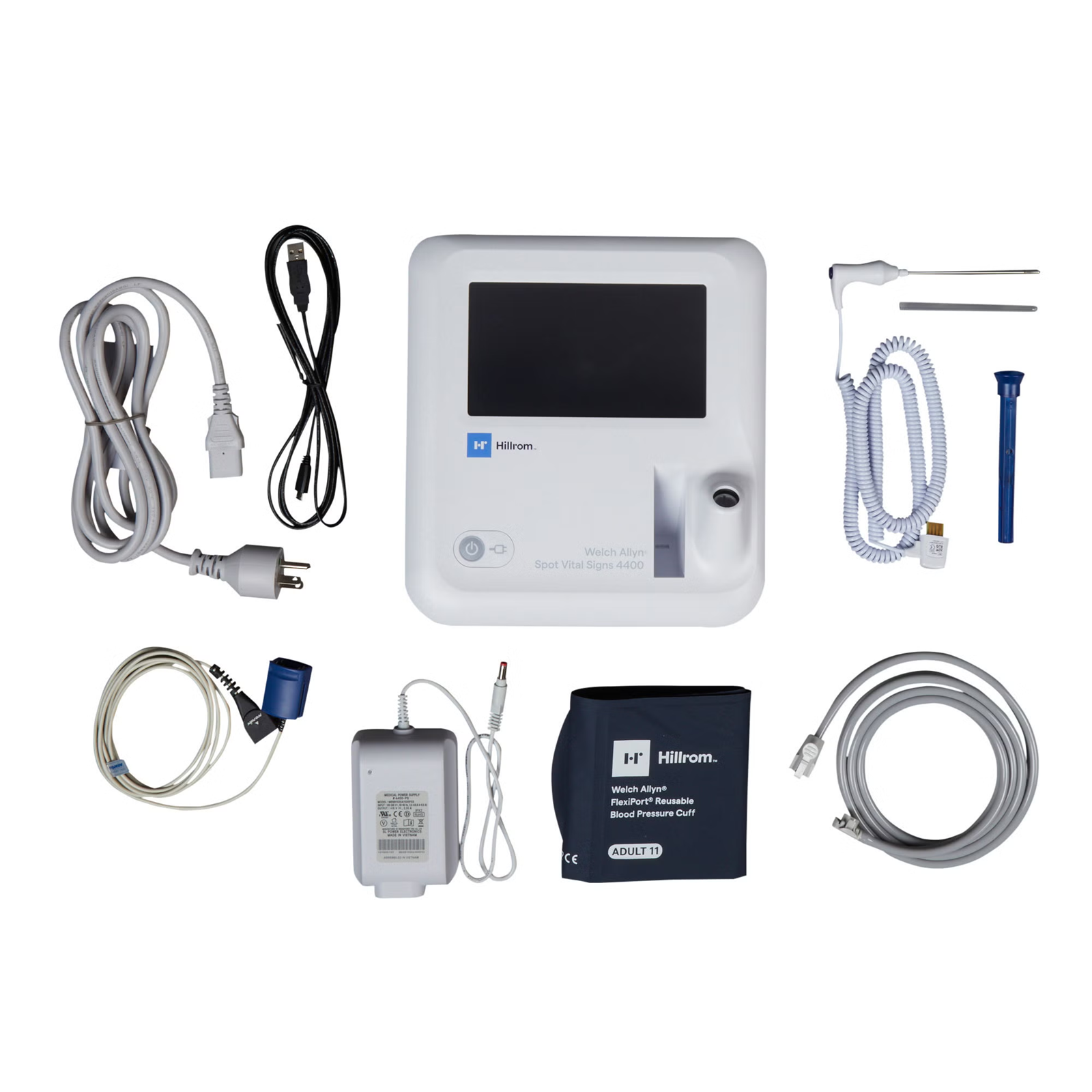

Welch Allyn Spot 4400 Vital Signs Monitor NIBP, Temp & SpO2 provides an integrated solution for capturing common patient vital signs during professional spot-check assessments. The 44WT-B configuration combines SureBP noninvasive blood pressure measurement, SureTemp Plus temperature measurement, Nonin pulse oximetry, pulse-rate monitoring, and an intuitive 7-inch color touchscreen in one compact device.
Designed for clinical spot-check workflows, the monitor can capture a complete set of supported vital-sign measurements in under one minute. SureBP technology supports rapid blood pressure measurements and built-in blood pressure averaging, while the SureTemp Plus and Nonin technologies provide integrated temperature and oxygen-saturation capabilities. The system can operate as a standalone monitor or support USB-based transfer of patient information into compatible electronic medical record workflows.
Key Features
| SureBP NIBP | SureTemp Plus | Nonin SpO2 |
|---|
| Automated noninvasive blood pressure measurement | Integrated professional thermometry | Integrated oxygen-saturation monitoring |
| 7-Inch Touchscreen | BP Averaging | Spot-Check Workflow |
|---|
| Large color touchscreen for simplified operation | Supports multiple-reading averaging | Captures essential vital signs efficiently |
| EMR Connectivity | Portable Operation | AC / Battery Power |
|---|
| USB connectivity supports compatible clinical data workflows | Compact format supports flexible placement | Operates from AC power with rechargeable battery capability |
Baxter identifies 44WT-B specifically as the Spot 4400 option combining SureBP NIBP, SureTemp Plus, and Nonin SpO2. The device is intended for professional spot-check measurement of blood pressure, pulse rate, oxygen saturation, and temperature.
Specifications
| Attribute | Details | Attribute | Details |
|---|
| Brand | Welch Allyn | Manufacturer | Baxter |
| MPN | 44WT-B | Product Type | Vital Signs / Patient Monitor |
| Model | Spot Vital Signs 4400 | Workflow | Spot Check |
| NIBP | SureBP | Blood Pressure Averaging | Yes |
| Temperature | SureTemp Plus | SpO2 | Nonin |
| Pulse Rate | Yes | Display | 7-Inch Color Touchscreen |
| Connectivity | USB | Wireless Connectivity | No |
| Patient Population | Adult / Pediatric | Operating Environment | Professional Clinical Settings |
| Device Dimensions | Approx. 10.1 × 9.3 × 4.9 in. | Device Weight | Approx. 3.8 lb. with Battery |
| Power | AC / Rechargeable Battery | Battery Runtime | Up to Approx. 8 Hours |
| Product Packaging | EA | Minimum Selling Unit | EA |
| Standard Warranty | 2 Years | Clinical Category | Vital Signs Monitoring |
The manufacturer identifies the Spot 4400 as a professional noninvasive multiparameter device and documents AC operation, rechargeable battery capability, and spot measurements of NIBP, pulse, SpO2, and temperature.
Baxter's current technical-service documentation lists the Spot Vital Signs 4400 standard warranty term as two years.
Performance & Workflow
| Function | Product Capability |
|---|
| Blood Pressure | SureBP automated NIBP |
| BP Measurement Speed | Approximately 15 seconds under applicable conditions |
| Temperature | SureTemp Plus |
| SpO2 | Nonin pulse oximetry |
| Pulse Rate | Supported |
| Blood Pressure Averaging | Supported |
| Patient Data Display | 7-inch touchscreen |
| Stored Readings | Up to 50 |
| EMR Workflow | USB connectivity |
| Battery Operation | Up to approximately 8 hours |
The manufacturer's platform is designed to obtain a complete vital-sign set in under one minute, while current configuration data documents the touchscreen, USB connectivity, memory, and battery workflow.
Warnings
| Professional Clinical Use | Patient Population | Measurement Technique |
|---|
| Intended for use by appropriately trained healthcare personnel | Use only with patient populations supported by the device instructions | Follow proper positioning and measurement procedures for each vital sign |
| Approved Accessories | SpO2 Sensor Integrity | BP Cuff Selection |
|---|
| Use compatible accessories and replacement components | Do not use damaged sensors or cables | Select an appropriately sized compatible cuff |
| Electrical Safety | Cleaning & Disinfection | Service |
|---|
| Use the supplied or approved power system | Follow validated cleaning and disinfection procedures | Refer service and warranty work to authorized service channels |
